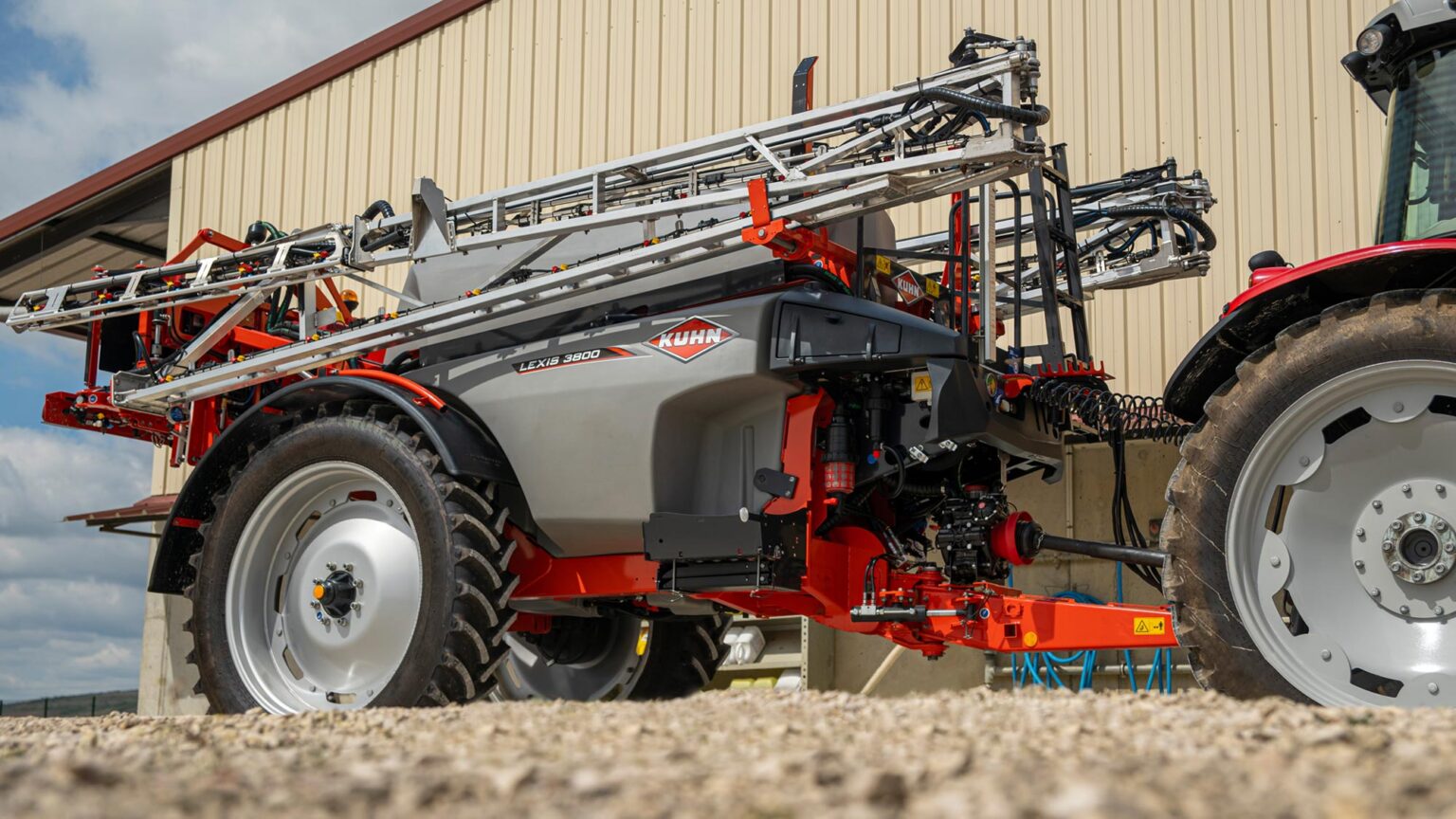

Kuhn LEXIS Utility Tractor Trailed Sprayer
- Compatible with selected John Deere utility tractors*
- 2400L or 3000L tank capacity
- 18 – 28m boom
- Ideal for multi-crop and grain type farms
* Photos are for illustrative purposes only. Horsepower requirement may vary with different crops, conditions and options used. Please consult our team for proper tractor sizing.
With the LEXIS sprayer: Never compromise on ease-of-use!
Spraying at the right time with a high-performance machine is essential to ensuring maximum product efficiency. To intervene quickly with a simple, reliable machine is a guarantee of safety and efficiency. With its optimised set-up, the LEXIS sprayer will fully meet these requirements.
Never compromise on ease of use: the LEXIS easy-to-use trailed sprayer is designed for maximum productivity. Save time with the LEXIS sprayer. With its trouble-free set-up, electronic units and easy maintenance, all your operations are made simple!
With a very limited number of valves, the LEXIS sprayer requires up to 50% fewer operations than the competitors in the segment.
Learning how to use it is thus easier with each use!
Quality is our watchword: the accuracy of LEXIS sprayers allows you to protect your crops durably and sustainably. The LEXIS sprayer features all the equipment you need with a simple yet top-of-the-range design.”
Features
Compact design & stability
A stable and manoeuvrable sprayer
With a hitch-to-axle length of 4 m and height of 3 m (with 21 m boom), the LEXIS sprayer is a very compact machine.
The machine’s short length allows for very short manoeuvring at the headlands of the field, better quality tracking will limit crop damage. The short hitch-to-axle length of the machine allows for flexible manoeuvring. This system makes it easier to enter the fields and reverse in the field corners.
The tank’s shape is specifically designed to integrate the boom into the design and also to limit the height when the boom is folded. The new MTA2 or MEA2 booms are integrated within the machine outline, and cannot come into contact with the tractor cab. The low height of the LEXIS trailed sprayer makes it more stable for transport. Drive on the road and enter the fields in safe conditions.
This compactness allows for fast and easy movement on the road and easy storage of the sprayer.
Simply intelligent tank design
Efficient tank design: the main tank on the LEXIS sprayer was designed to achieve a low centre of gravity. The largest part of the tank is adjacent to the frame, providing maximum machine stability.
The deep sump allows for tank draining in all conditions, regardless of the slope in the field. Located near the sump, the four-dimensional mixing system guarantees a homogeneous spray mixture, without the formation of foam, throughout the spraying operation.
Maintain balance: the central position of the 320-litre rinsing tank on the axle allows the LEXIS sprayer to maintain good balance in any conditions while also reducing any dead volumes. The centre of gravity of the machine remains along the axis, regardless of the tank level.
The LEXIS sprayer is also exceptionally easy to use. Filling of the rinsing tank? Rinsing tank gauge? All the components are on the operating panel.
Keep all the elements within arm’s reach
The LEXIS sprayer has numerous storage compartments, both for the storage of personal protective equipment (PPE) and for the control box when the machine is unhitched.
To work around the sprayer in safe conditions, KUHN has fitted the LEXIS sprayer with two storage compartments for your personal protective equipment. Your equipment is easy to access before handling the crop protection products.
For transporting larger components, the machine is equipped as standard with a storage platform on the right-hand side.
Aluminium booms
Aluminium booms: a lightweight and durable solution
The booms are made of aluminium which features a density three times less than steel, keeping the structure light and providing a structure to protect the sprayer components. The lightweight booms allow the sprayer to follow the ground, even over wet areas.
Aluminium booms feature outstanding durability. Completely insensitive to corrosion and chemical aggression, aluminium needs no special protection and greatly facilitates sprayer maintenance while providing long service life.
Aluminium naturally features several advantages.
KUHN has been using aluminium since 1986 to manufacture booms larger than 18m:
- Natural resistance to corrosion: which is a crucial issue when in contact with plant protection products and fertilisers.
- Density 2.7x less than steel: a stronger and lighter boom!
TRAPEZIA suspension
Specially designed for MTS2 and MTA2 booms, the TRAPEZIA boom suspension is perfectly adapted to the LEXIS sprayer.
The TRAPEZIA suspension is controlled by two rods that stabilise the boom, as well as two springs that allow the boom to naturally follow sloping terrain. Tilt correction is mechanical and automatic. A hydraulic tilt corrector is available for more specialised applications.
Main characteristics:
- 2 stabilising links
- Automatic mechanical tilt corrector
- Hydraulic tilt corrector
EQUILIBRA suspension
The EQUILIBRA suspension with pendulum link provides the boom with a three-dimensional shock absorption system. The EQUILIBRA suspension system allows the boom to remain perfectly parallel to the ground when driving over rough terrain. The boom runs smoothly over the ground and crops without shifts or drifts!
On uneven terrain, the combination of a pendulum and link offers sufficient freedom of movement to keep the boom steady, regardless of the type of terrain encountered. Two shock absorbers also dampen and limit vertical movements to keep the boom perfectly level, especially when cornering at high speed.
The EQUILIBRA suspension is designed to work in intensive conditions and includes an independent anti-whiplash system, protecting the boom while cornering or during acceleration/braking.
EQUILIBRA 3D suspension: for intensive conditions!
- Robust pendulum movement
- Link rods for radial movement
- Shock absorbers to eliminate any rebounds
- Independent left/right anti-whiplash system
- Spring-loaded automatic tilt corrector
- Frame locking
MEA2 boom
The robust MEA2 boom is equipped with the EQUILIBRA suspension system and is designed to last. Available in widths of 18, 20, 21 and 24 metres, it offers numerous advantages:
- Joints are locked during work
During spraying the boom joints often cause whiplash and may compromise structure reliability. The MTA and MEA booms feature joints that are locked during work, with a self-locking cross-brace, improving the boom stability and reliability!
- Tubes built into the structure
The safety breakback on the boom ends can rotate in all three dimensions. The pipe and nozzles are fitted within the structure, and protected in front, underneath and behind the boom. There is no risk for the boom even in case of collisions.
- Stainless steel pipes and pipe adjustment
The stainless steel pipe guarantees a long service life, and is insensitive to temperature changes. The entire pipe height can be adjusted for the jets to remain constantly protected by the boom structure, regardless of the type of nozzle used.
The MEA2 boom also incorporates the well-known strong points of the entire range:
- Protection of the nozzles over the entire boom width
- 3-dimensional safety
- Compact folding
- Bowl filters on each section
- Quadrijet nozzle holders
Easy & safe operation
A simple and well-designed spraying circuit
Sprayer set-up is a key step in the spraying operation. With two main valves, the total number of filling operations required before rinsing is considerably reduced, and so is the risk of error. With a simple circuit, all sprayer actions are under control. With the LEXIS sprayer, imagine what you can do before even touching a valve!
Even after not having used the machine for quite some time, getting back into the hang of it is easy.
Although easy to use, its shorter circuit allows for reduced dead volumes, which simplifies the rinsing process. When you’re finished spraying, you can be assured that the sprayer is entirely rinsed!
MANUSET operation
Manual MANUSET operation offers you complete control when preparing your products. With only 2 main valves, all of the sprayer’s functions are controlled from the operator’s control station.
With the 360° multifunction handwheels, reduce handling operations up to 50%. Thanks to an ergonomic design, the valves are easily operated for a simple, trouble-free set-up. Multifunction handwheels make spraying easier.
During rinsing, a 360° rotation with the delivery circuit handwheel ensures that the water drawn in by the pump is conveyed into all sprayer circuits. The rinsing tank level gauge, visible from work station allows for even easier sequencing of the rinsing operations.
DILUSET+ operation
Rinsing of the sprayer, or the boom only, from the cab.
Suction filling is programmable and stops automatically when the setpoint is reached. A dual control also allows you to maintain control of all the functions from the operator’s control station.
During rinsing, and without exiting the tractor cab, simply click the terminal to draw in water. Then send it where you want it to go: to the rotary washers to rinse the tank, or directly to the boom to rinse boom pipes, without diluting the spray mixture in the tank.
Finally, the actual volume remaining in the tank can be displayed on the in-cab terminal throughout the entire spraying operation. The management of tank residues is also just as easy.
Available with REB3 / VISIOREB / ISOBUS terminals
Quick and safe incorporation of chemicals
The sprayer’s 35-litre chemical induction bowl is characterised by its funnel shape, enabling efficient incorporation of all types of products: liquids, powders and granules. The rinsing system consists of 2 rotary nozzles designed to clean jugs, measuring cups, containers and the chemical induction bowl.
The induction bowl has only one valve through which the active ingredient can be introduced into the circuit. This valve is safely actuated by a foot pedal thus avoiding the need for the operator to bend down. All other operations are carried out using the hand-held lance located nearby, thus avoiding all risk of projection. The induction bowl is rinsed with the cover closed, thereby preventing any risk of splashing or misting.
No more blockages with quadruple filtration
The bowl filters after the section valves are located on the boom. They are as close to the nozzles as possible to limit the risk of blockages. All filters are cleanable even if the sprayer is full.
