Loaded with impressive specs and productivity-enhancing features, G-Series Skid Steers tackle the toughest tasks. Because they are built with extreme pushing power and bucket breakout forces, as well as increased auxiliary hydraulic flow, they’re always ready to come back for more.
Expect heavy-duty uptime from our Skid Steers
The G-Series is loaded with time- and money-saving features. These include heavy duty drivetrains, hydraulics in the boom, fluid-efficient diesels and large tanks which enable all-day operating.
All machines are backed by RDO Equipment’s service and support teams. With a wide dealer network, our parts and service experts are always on call for any issue or enquiry.
- Rated Operating Capacity: 704 kg (1,550 lb.)
- Gross Power: 36 kW (48 hp) @ 2,600 rpm
- Net Power: 34 kW (46 hp) @ 2,600 rpm
- Operating Weight: 2722 kg (5,995 lb.)
- Rated Operating Capacity: 799 kg (1,760 lb.)
- Gross Power: 36 kW (48 hp) @ 2,600 rpm
- Net Power: 34 kW (46 hp) @ 2,600 rpm
- Operating Weight: 2867 kg (6,315 lb.)
- Rated Operating Capacity: 795 kg (1,750 lb.)
- Gross Power: 44 kW (60 hp) @2,600 rpm
- Net Power: 42 kW (56 hp) @2,600 rpm
- Operating Weight: 2894 kg (6,375 lb.)
- Rated Operating Capacity: 883 kg (1,945 lb.)
- Gross Power: 44 kW (60 hp) @2,600 rpm
- Net Power: 42 kW (56 hp) @2,600 rpm
- Operating Weight: 2940 kg (6,475 lb.)
- Rated Operating Capacity: 994 kg (2,190 lb.)
- Gross Power: 51.7 kW (69 hp)
- Net Power: 49.4 kW (66 net hp)
- Operating Weight: 3246 kg (7,150 lb.)
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Power: 55.0 kW (74 hp)
- Net Power: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)
- Rated Operating Capacity: 1362 kg (3,000 lb.)
- Gross Power: 68 kW (91.2 hp)
- Net Power: 66 kW (88.5 hp)
- Operating Weight: 4495 kg (9,900 lb.)
- Rated Operating Capacity: 1634 kg (3,600 lb.)
- Gross Power: 74.6 kW (100 hp)
- Net Power: 72 kW (96.6 hp)
- Operating Weight: 4540 kg (10,000 lb.)
Features of John Deere Skid Steers
John Deere’s reimagined skid steers are crafted for power, performance, and productivity. They are perfect for handling heavy loads and deliver excellent boom and bucket breakout forces. Their low centre of gravity and sure-footed balance ensure superb agility and stability, even on slopes. Here’s a closer look at their expanded features:
Radial or Vertical Lift
Cater to your specific application needs by selecting between the radial and vertical lift.
- Radial Lift: This offers more reach at mid-range lift heights and is ideal for digging, grading, and backfilling.
- Vertical Lift: This offers greater lift height and reach at the top of the lift path, providing enhanced stability.
Power Lifter

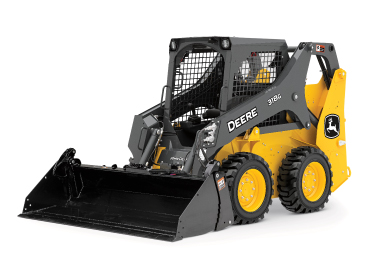

The vertical-lift boom rises to a hinge-pin height of 10 feet on the 314G and 318G models. This feature significantly enhances the machine’s lifting capacity.
High-powered Boom
The radial-lift booms on the 312GR and 316GR models offer powerful digging performance and generous reach. For even better lifting capability, consider the 314G and 318G models equipped with vertical-lift booms that deliver impressive lifting and truck-loading abilities.
Carry More, Spill Less
Both radial and vertical-lift designs keep the load close to the machine for reliable stability. Features such as a low centre of gravity, 30-degree bucket rollback, optional hydraulic self-levelling, and optional ride control (available on 316GR and 318G models) all work together to ensure that buckets stay full and forks remain loaded. You can add even more capacity with up to two sets of counterweights.
