- SmartGrade™ - Fully integrated and truly mastless 3D Grade Control
The next generation of SmartGrade™ is here – and it’s even more accurate than ever before. With 2D and 3D views on one larger screen, remote display access, flexible licenses, and open ecosystem options, making grade just got a whole lot easier.
Jobsite-agnostic
SmartGrade is jobsite agnostic, integrating with multiple site positioning technologies and setups, so you can move between jobs with minimal fuss.Fully Integrated and truly mastless
John Deere SmartGrade™ is a fully integrated, truly mastless 3D grade control system that uses in‑cylinder position sensing to automatically adjust the blade to your site plan, delivering faster, more accurate grading with less operator input.Compliments the automation features
Auto-pass and SmartGrade working hand in hand to reduce operator fatigue and enables new operators to be more productive sooner. - Premium Circle
For over 5 years, the Premium Circle has redefined grading with its fully sealed design, delivering superior accuracy and minimal maintenance. Forget circle wear and adjustment delay, Premium Circle keeps you working, not waiting.
Improves Grade Accuracy
No adjustments needed to compensate for circle wear, as there are no circle shims and wear guides.All in the numbers
- 15% increase in circle speed and 40% more circle torque compared with the traditional circle
- 500 hour grease intervals
- 4000 hour gearbox oil change
- Dirt proven for more than 5 years
Reduced Maintenance
- No circle shims or wear guides to maintain.
- No daily greasing of the circle needed.
- Premium circle life = Life of the motor grader
- What automation features are available on the P-Tier motor graders?
Automation features are designed to boost efficiency, lessen learning curves, and automate repetitive tasks. Imagine less rework, fewer mistakes, and more time to focus on the big picture. It’s tech that’s not just smart but works smart for you – so you can push the limits of what you can accomplish.
Auto-Shift PLUS
Enables operators to move the machine and work without having to use the inching pedal, manually select gears or stall while stopped.
Exclusive Machine-Damage Avoidance
Reduces the risk of blade damage to machine structures during any operation, so operators can focus more closely on simply making grade.
Auto-Pass
Makes grading easy by automatically placing the blade on the ground and activating the grade-control system (when equipped) at the start of the pass, then automatically raising and resetting the blade at the end of it.
Blade Flip
Use Blade Flip to automatically mirror the circle to a preset angle with the touch of a button.
Auto-Articulation
Lets the operator increase the manoeuvrability of coordinated steering and articulation while using only the joystick-steering function to steer and operate other necessary functions without manually articulating the machine.
- What are the list of improvements made to the P-Tier motor graders?
New G5 SmartGrade Screen
Clear, 10 inch HD touchscreen with an intuitive interface for fast, confident operation. Seamlessly controls SmartGrade™ operation and adjustments delivering faster, more accurate grading.
Advanced Vision System (AVS)
Uses multiple cameras to give you a wider view around the machine, helping reduce blind spots and boost jobsite awareness. Add in the Dual Front Alley Cam and you get a clear view down both sides of the grader, improving visibility in tight spaces so you can work safer, more accurately, and with greater confidence.
Improved Cab Layout
The new cab layout keeps everything within easy reach, with a cleaner, more intuitive setup that helps you operate comfortably and stay focused on the job.
Great Visibility
You get clearer, wider visibility around the machine with the redesigned P-Tier cab, so you can see more of the moldboard and your surroundings for safer, more precise grading.
Sealed Switch Module (SSM)
Replaces a large number of traditional rocker switches by bringing key machine functions into one simple, easy-to-reach control panel. Its sealed, weather-resistant design keeps out dust and moisture, delivering years of reliability.
All New 8 Inch Touchscreen Primary Display
This large, easy to use display houses the machine settings and setups as well as Cross Slope and Automation features.
Improved Seat
The new air ride seat is now heated and cooled, with easy to move slide adjustments at your fingertips. Getting comfortable and staying comfortable has never been easier.
Ergonomic Joysticks
The ergonomic joystick design fits the natural position of your wrists and hands, reducing fatigue and giving you smooth, precise control all day.
Simplified 6WD Controls
Reduces the size of the console and removes switches. The rotary knob is used for both 6WD mode and Precision mode depending on the switch position.
- How easy are P-Tier motor graders to maintain?
Uptime is everything! P-Tier graders continue to offer complete easy access service points and durability enhancing advantages that help deliver years of trouble-free service.
Ground-level service access
All daily service points, including refueling, are conveniently grouped on the left side and are easily accessible from ground-level through one door.
Periodic maintenance
Is all oriented on the right side of the machine using easy to access vertical spin-on filters.
Periodic maintenance
Is all oriented on the right side of the machine using easy to access vertical spin-on filters.
Outstanding control & intelligent grading precision
The latest John Deere P-Tier Motor Graders are engineered to deliver exceptional control, grading accuracy, and productivity across road construction, infrastructure, council maintenance, and earthmoving applications. Building on decades of customer-driven innovation, the P-Tier range combines advanced automation features, intuitive electrohydraulic (EH) controls, and integrated grade-management technologies to help operators of all skill levels achieve precise, repeatable results. With configurable dual-joystick or fingertip controls, excellent machine balance, and outstanding visibility to the blade and work area, operators can work comfortably and confidently throughout the day.
Operator-focused design and simplified maintenance
P-Tier Motor Graders are designed to maximise both operator comfort and machine uptime. The modern cab features an intuitive touchscreen display, automatic climate control, ergonomic seating, and conveniently located machine-function controls to reduce fatigue during long shifts. Daily service points are grouped for easy ground-level access, while major filters and maintenance components are positioned for efficient servicing and reduced downtime. Backed by RDO Equipment’s nationwide parts, service, and technical support network, you can count on expert assistance whenever and wherever it’s needed.
Advanced grade control technology
John Deere’s suite of integrated grade-management technologies helps simplify complex grading tasks while improving accuracy and productivity. Standard Cross Slope technology automatically maintains blade slope for consistent grading results, while SmartGrade™ Ready and fully integrated SmartGrade™ systems provide scalable solutions for operators seeking higher levels of automation. Unlike traditional mast-based systems, SmartGrade uses integrated machine sensors and in-cylinder position sensing to maintain precise grade control regardless of blade pitch, articulation angle, or circle position. The result is faster completion times, reduced rework, improved material utilisation, and greater consistency across every pass.
Built for councils, contractors and civil construction

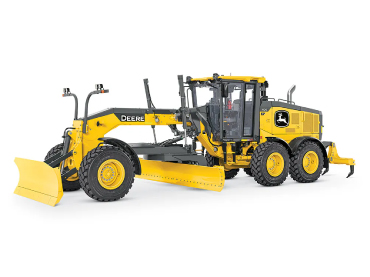

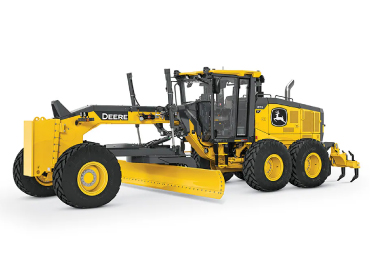

From the versatile 620 P-Tier through to the high-capacity 872 P-Tier, John Deere Motor Graders are available in both 4WD and 6WD configurations to suit a wide range of applications. Whether maintaining local roads, constructing subdivisions, supporting mining operations, or delivering major infrastructure projects, the P-Tier range offers the performance, automation, and reliability required to tackle today’s toughest grading challenges.
- Net Power: 160 kW (215 hp)
- Operating Weight: 18,340 kg (40,433 lb.)
- Blade Pull: 14,091 kg (31,066 lb.)
- Net Torque Rise: 40%
- Net Power: 168 kW (225 hp)
- Operating Weight: 19,005 kg (41,899 lb.)
- Blade Pull: 20,412 kg (45,000 lb.)
- Net Torque Rise: 38%
- Net Power: 175 kW (235 hp)
- Operating Weight: 19,418 kg (42,811 lb.)
- Blade Pull: 15,501 kg (34,173 lb.)
- Net Torque Rise: 56%
- Net Power: 190 kW (255 hp)
- Operating Weight: 20,202 kg (44,537 lb.)
- Blade Pull: 22,453 kg (49,500 lb.)
- Net Torque Rise: 50%
- Net Power: 190 kW (255 hp)
- Operating Weight: 19,937 kg (43,954 lb.)
- Blade Pull: 15,501 kg (34,173 lb.)
- Net Torque Rise: 54%
- Net Power: 205 kW (275 hp)
- Operating Weight: 20,786 kg (45,825 lb.)
- Blade Pull: 22,453 kg (49,500 lb.)
- Net Torque Rise: 50%
- Net Power: 209 kW (280 hp)
- Operating Weight: 20,654 kg (45,535 lb.)
- Blade Pull: 15,501 kg (34,173 lb.)
- Net Torque Rise: 53%
- Net Power: 209 kW (280 hp)
- Operating Weight: 20,654 kg (45,535 lb.)
- Blade Pull: 15,501 kg (34,173 lb.)
- Net Torque Rise: 53%
As seen on Instagram
Features of John Deere Motor Graders
Premium Circle
Upgrade to Premium Circle (included with SmartGrade) to benefit from lower operating costs with no wear inserts to replace or maintain over the life of the machine. This option replaces the circle gearbox drive and circle with a fully sealed bearing for easier maintenance, and a 40% increase in circle torque and 15% increase in circle speed. Includes Slip Clutch.
Auto-Shift PLUS for Unmatched Control
John Deere Motor Graders present a new level of operation with the innovative Auto-Shift PLUS. This feature lets operators control the machine using only the throttle and brake, eliminating the need for manual gear selection or the inching pedal. Say goodbye to unexpected stalling and enjoy smoother operation.
Exclusive Machine-Damage Avoidance
Focused on protecting the integrity of your machinery, John Deere Motor Graders incorporate a unique system that limits blade movement to prevent damage to tires, steps, or structures, even under complex machine positions. This allows operators to concentrate on achieving the perfect grade.
Auto-Pass for Efficient Grading
John Deere pioneers a ground-breaking feature – Auto-Pass – that automates machine movements including raising, rotating, and adjusting the angle of the blade at the start and end of grading passes. All it takes is a single press of a button. Auto-Pass is available on all John Deere Grade Pro (GP) models and comes standard on all SmartGrade machines.
Industry’s First Machine Presets
Preparing the machine for transport is now push-button easy with the industry-exclusive Blade Stow feature, part of the Machine Presets. This function stows the blade and ripper, activates lights including the hazards, automatically adjusts the moldboard to a predetermined angle, and enables Auto-Shift all at once.
SmartGrade™ Motor Graders
John Deere Motor Graders rise above the competition with their SmartGrade technology. As the industry’s first, these motor graders are fully integrated and calibrated from the factory, arriving at your job site ready to work right out of the gate. The SmartGrade Motor Graders symbolise the epitome of intelligent design and operational efficiency.
