Compact Utility Tractor
- 24 kW (32 hp) Engine
- eHydroâ„¢ transmission with Twin Touchâ„¢ pedals
- Rear hitch capacity up to 995 kg (610 mm behind lift link ends)
- AutoConnectâ„¢ drive-over mower decks up to 1.8m (72″)
- Cab or Open operator station

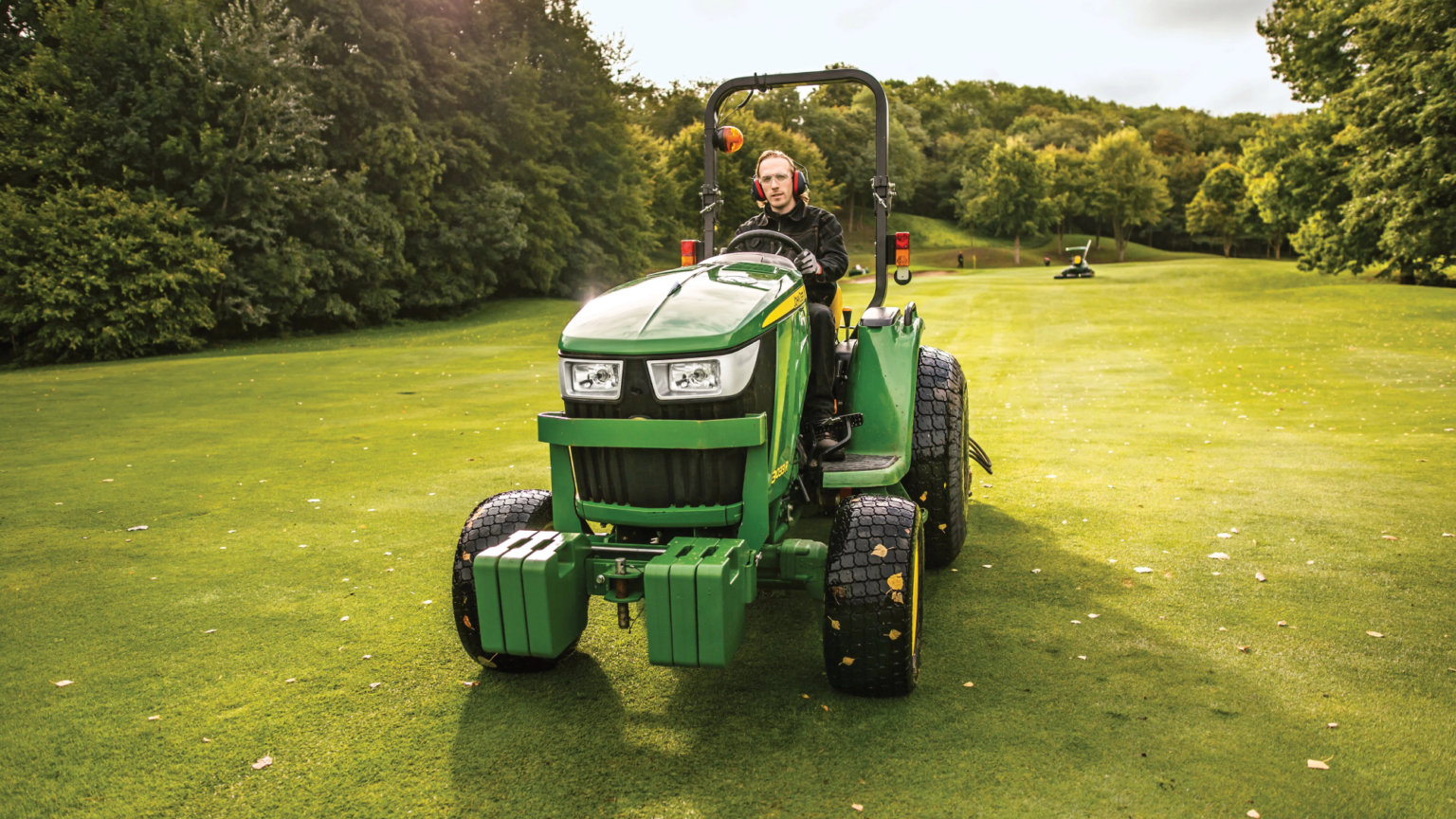

A compact tractor that handles effortlessly, perfect for lifestyle acreage management and grounds maintenance
A balance of fuel efficiency and clean performance is maximised by a suite of advanced features standard across the John Deere 3R Series range of Compact Utility Tractors. The 3033R utility tractor is driven by a 3-cylinder Yanmar® diesel engine delivering 105 Nm at 1,690 rpm, with efficient fuel delivery and speed control, and the effortless control of eHydro™, our 3-range electronic transmission with Twin Touch™ pedals.
Features
Attractive styling provides improved visibility and serviceability
The bold styling of the tractor provides an attractive and functional appearance similar to that of the larger agricultural tractors.
An updated fixed grill and side panel hood design allows for optimum sealing of the cooling compartment, and the integrated maintenance position on front grill allows easy battery access. There are wraparound-style halogen headlights and bold graphics allowing for easy tractor family identification.
The aggressively sloped hood design gives a softer, smoother look, and provides improved visibility.
Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
The Yanmar 3-cylinder, TNV series diesel engine features a high torque reserve that provides plenty of power under heavy loads.
The common rail system (CRS) optimizes fuel economy and reduces operating costs*. High pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and lower cost of operation.
The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.
Maximize productivity with an eHydroâ„¢ transmission
The 3R Series Tractor is available with an exclusive three-range electronic hydrostatic (eHydro) transmission. The electronic hydrostatic transmission is ideally suited for jobs where productivity is a must, such as loader or mower applications.
Key features of the eHydro transmission are:
- Infinite ground speeds, even at full throttle, allow the operator to match the speed of the tractor to the job
- No clutching for fast and easy direction changes
- Twin Touch foot pedals for quick and easy forward/reverse operation
- Cruise control is base equipment
- Cruise-control switch is located on the right-hand console for easy access
- Cruise control is electronically engaged and disengaged and allows for more precise setting of speed
PowrReverserâ„¢ transmission allows for clutchless direction changes
The PowrReverser transmission, available on 3033R and 3039R Tractors, offers a hydraulically-shifted forward-to-reverse transmission. This allows for clutchless shuttle shifting between forward and reverse with one lever for quick and easy direction change.
- The PowrReverser transmission does not require the operator to use the clutch to shift between forward and reverse
The 12Fx12R PowrReverser transmission’s hydraulically-actuated wet clutch takes the place of the dry-type traction clutch. Two multi-disk clutch packs (one forward and one reverse) are hydraulically actuated when the directional (reverser) lever is placed in either the forward or reverse position
Each clutch pack consists of three large, 13-cm (5-in.) diameter clutch disks that are oil-cooled, allowing excellent heat dissipation and extended clutch life.
Operator station is comfortable and convenient
The hood and fenders are made from composite polymer material designed to eliminate the possibility of rusting and resistance to dents. The tractor is fitted with an easy-fold rollover protective structure (ROPS), with built-in, rattle-reducing isolator.
Key features of the operator’s station include:
- Large grab handles on each fender make getting on and off the tractor easy
- Tilt steering wheel design in base equipment. The tilt wheel:
- Easy-fold ROPS include a built-in isolator for rattle free operation
Optional premium ComfortGardâ„¢ cab provides superior comfort and performance
Whether doing loader work, front implement work (such as snow removal), mowing, tilling, rotary cutting, or light hay work, the cab tractors have the versatility and muscle to get the job done, all while protecting the operator from the elements.
Operators are sure to appreciate what this cab has to offer — beginning with an isolated cab. These cabs are designed with robust mounting points integrated into the rollover protective structure (ROPS) with a unique offset mounting design that provides an ultra-quiet ride.
The four-post ROPS design, carefully laid-out interior, and fuel tank located under the left rear side of the operator’s platform provide a full 360 degrees of visibility.
Built-in safety features for operator peace of mind
Safety is designed into all 3R Series Tractors.
- Operator presence system ensures the operator is in the seat to operate the tractor
- Rollover protective structure (ROPS) is designed for operation safety
- Reflective ROPS strips for better tractor visibility
- Key switch interlock prevents bypass starting
- Visual power take-off (PTO) warning light alerts operator when either mid or rear PTO is running
- Reverse implement option (RIO) for safe mid-PTO operation
- Placing the transmission in neutral and setting the park brake allows operator to run rear PTO safely when off the tractor seat
- Turn signal and flashing warning lights operate according to ASAE S279.10 standard
- Taillights for road transport
- Slow moving vehicle (SMV) sign for road transport
Excellent serviceability reduces operational costs and improves productivity
Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor. Easy access to most regular service points minimises service time.
Tractors are equipped with extensive onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system. Most service interval requirements can be performed with a basic understanding of procedures and common tools.
- Engine oil, hydraulic oil, coolant level, and the water separator can be conveniently accessed.
- The engine can be easily accessed by simply raising the hood for more periodic maintenance checks
- A single-point latch mechanism and self-contained leash ensure easy hood opening and closure.
NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.
Specifications: | |
---|---|
Model | 3033R (Model year 2025) |
Key Specs | |
Engine power (gross) | SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm |
PTO power - Gear transmission | 19.5 kW 26.1 hp |
Steering hydraulics | 23.5 L/min 6.2 gpm |
Implement hydraulics | 34.3 L/min 9.1 gpm |
Hitch type | Category 1 |
Lift capacity, (610 mm behind link arms) | 995 kg 2193.6 lb |
Standard transmission; forward/reverse | PowrReverser transmission |
Cruise control | PowrReverser transmission: Not applicable eHydro transmission: Standard |
Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1353 kg 2983 lb Cab: 1633 kg 3600 lb |
Wheelbase | 1727 mm 68 in. |
Power take-off (PTO) power | PowrReverserâ„¢ transmission: 19.5 kW 26.1 hp eHydroâ„¢ transmission: 17.2 kW 23 hp Per SAE J1995 |
Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
Engine | |
Type | Diesel |
Air cleaner | Dual element |
Lubrication | Pressurized |
Fuel tank capacity | OOS: 37.4 L 10 U.S. gal. Cab eHydro transmission only: 47.6 L 12.6 U.S. gal. |
Manufacturer | Yanmar® |
Engine model | 3TNV88C-MJTV |
Engine power (gross) | SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm |
PTO power - Gear transmission | 19.5 kW 26.1 hp |
Rated engine speed | 2600 rpm |
Injection pump type | High pressure common rail direct injection |
Aspiration | Natural |
Emissions compliance | Final Tier 4 |
Cylinders/displacement | Three cylinders: 1.64 L 100 cu in. |
Number of cylinders | Three |
Cylinder liners | Cast-in-block |
Bore and stroke | 88x90 mm 3.46x3.54 in. |
Compression ratio | 19.1:1 |
Cooling system | Liquid |
Engine torque @ rated speed | 87 Nm 64.2 lb-ft |
Power take-off (PTO) power | PowrReverser transmission: 19.5 kW 26.1 hp eHydro transmission: 17.2 kW 23 hp |
Engine torque at rated speed | 87 Nm 64.2 lb-ft |
Fuel system | |
Type | High pressure common rail direct injection |
Dimensions | |
Wheelbase | 1727 mile 68 in. |
Turning radius without brakes | 2.8 m 9.2 |
Approximate shipping weight (open-station; cab) | OOS: 1353 kg 2983 lb Cab: 1633 kg 3600 lb |
Turning radius with brakes | 2.7 m 8.8 ft |
Front axle clearance | Minimum: 171 mm 6.7 in. Maximum: 299 mm 11.8 in. |
Power take-off (PTO) | |
Standard | Independent rear: 540 rpm |
Control | Lever and switch |
Clutch | Wet disk |
Brake (for mid and rear PTO) | Wet disk |
Optional | PowrReverser transmission: Mid - not applicable eHydro transmission: Mid - 2100 rpm |
Transmission | |
Standard transmission; forward/reverse | PowrReverser transmission; 12F/12R |
Left-hand reverser | PowrReverser transmission only |
Final drive | Spur gear |
Brakes | Multi-plate wet disk |
Steering | Hydrostatic power steering |
Cruise control | Yes |
Differential lock | Yes |
Transmission gear ranges | PowrReverser transmission: 12F/12R eHydro transmission: three-range, infinitely variable |
Clutch, wet/dry | PowrReverser transmission: Wet disk |
Optional transmission; forward/reverse | eHydro transmission |
Tires | |
Front | R1 Bar: 7-14 R3 Turf : 27x8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25x8.5-14 or 27x8.5-15 |
Rear | R1 Bar: 11.2-24 R3 Turf: 41x14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43x16-20 |
Front tread range | 1117 mm 44 in. |
Rear tread spacing | 1031 mm 40.6 in. |
Electrical | |
Battery size | 500 CCA |
Alternator (12-V) | 75 amp |
Starter size | 1.4 kW 1.9 hp |
Axle capacity | |
Front | 1450 kg 3197 lb |
Rear | 1850 kg 4079 lb |
Cruise control | PowrReverser transmission: Not applicable eHydro transmission: Standard |
Differential lock | Yes |
Hydraulics | |
Type | Open center |
Pump rated output | 57.8 L/min 15.3 gpm |
Steering | 23.5 L/min 6.2 gpm |
Implement | 34.28 L/min 9.1 gpm |
Pump type | Single gear |
Remote control valves available | Up to six rear remotes |
Maximum operating pressure | 172 bar 2495 psi |
Draft control sensing | Position control |
3-point hitch | |
Type | Category 1 |
Lift capacity, (610 mm behind link arms) | 995 kg 2193.6 lb |
Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
Fluid capacities | |
Crankcase with filter | 4.3 L 4.5 gal. |
Transmission and hydraulic system, gear | 26.5 L 6.5 U.S. gal. |
Transmission and hydraulic system | PowrReverser transmission: 24.6 L 6.5 U.S. gal. eHydro transmission: 26.5 L 7 gal. Cab eHydro transmission only: 26.5 L |
Final drive | |
Type | Spur gear |
Differential lock | Yes |
MFWD dimensions | |
Wheelbase | 1727 mm 68 in. |
Front axle clearance | 171 mm 6.7 in. |
Approximate shipping weight (open-station; cab) | R1: 1353 kg 2982.9 lb R3: 1365 kg 3009.3 lb R4: 1386 kg 3055.6 lb |
Cab | |
Doors | Two |
Compliance | Complies with OSHA, SAE, and CSA standards for rollover protection |
Visibility | 360 degree (angle) |
Noise rating | 80 dBA |
Seat equipment | Scissor-link |
Pump rated output | |
Steering | 23.48 L/min 6.2 gpm |
Implement | 34.28 L/min 9.05 gpm |
Pump type | Single |
Maximum operating pressure, bar | 172 bar 2494.65 psi |
Rollover protective structure | |
Type | Foldable |
Platform - Flat/straddle | One-piece semi flat |
Gear shift location - console/floor | PowrReverser transmission: Right-hand side eHydro transmission: Not applicable |
