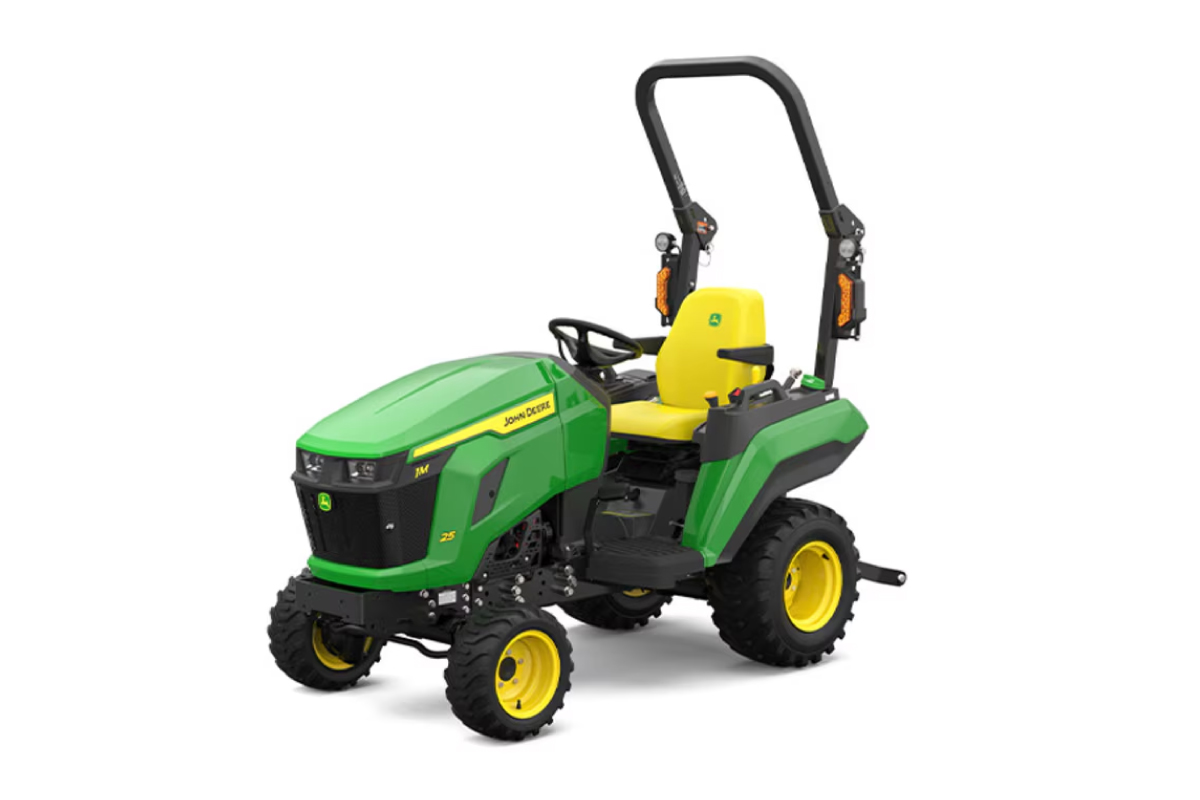

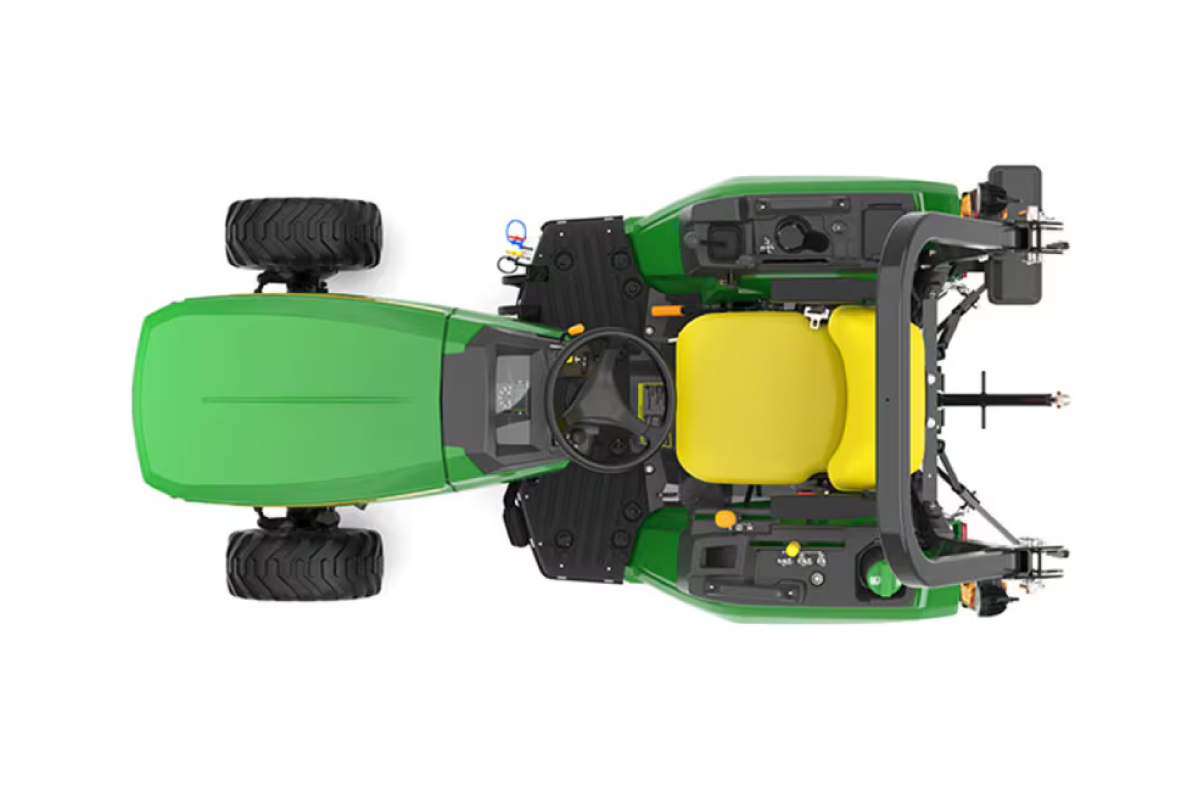

1M 25 Sub-Compact Utility Tractor

1 Series Tractors are designed to minimise the time and effort needed to switch-out implements to accommodate different jobs.

• AutoConnect™ Deck System: Connect a mid-mount mower deck to the tractor without leaving the seat except to lock the gauge wheels.
• Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
• iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
  • Position control hitch on 1M 25: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
• Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilises one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.

1 Series Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.

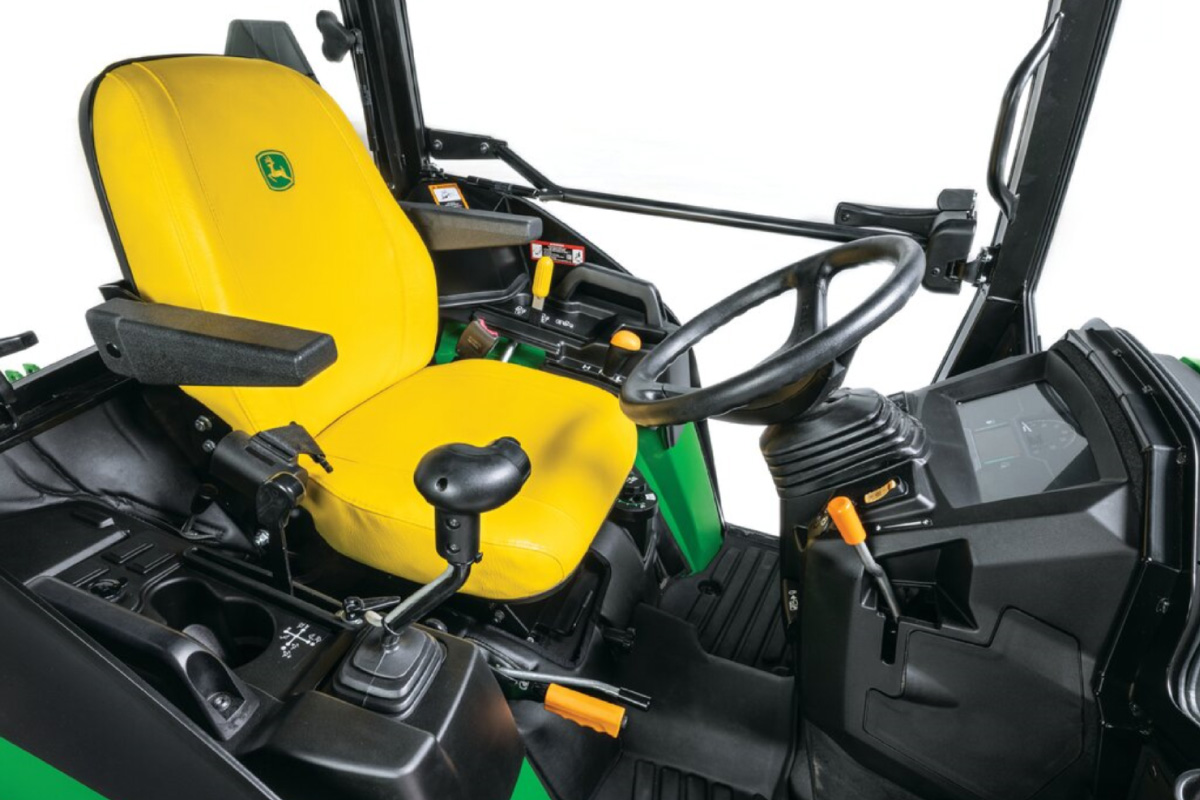

Twin Touch™ foot controls allow you to select both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

• Infinite ground speeds, even at full throttle, to match the job
• No clutching for fast direction changes
• Provides high torque for start up
• Reduces power train shock loads
• Large foot pedals were designed for your comfort and allow for convenient operation of the tractor

Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.

• To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.
• You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.
• Any size and type of operation will appreciate the features in Equipment Mobile.
• A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)

Benefits
Equipment Mobile:

• Quickly scan the PIN to access maintenance, parts, and manual information
• Conveniently access and share Diagnostic Trouble Codes for troubleshooting
• Receive maintenance reminders and parts recommendations to minimize downtime
• Access equipment that is already loaded into your Operations Center account by logging into Equipment Mobile with your John Deere account login
• Create daily checklists to increase efficiency

Additional details
Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.

Users can still benefit from Equipment Mobile if they do not have a Smart Connector.

Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.

Switching chores shouldn’t be a chore. Our Quick Connect Solutions make it easier than ever to swap out implements and attachments on your 1 Series Tractor. Seamlessly go from digging to mowing to trenching and get more done on your time.

John Deere Quik-Knect™ PTO Receiver
Click in PTO-driven implements (115 PTO horsepower or less) to the back of your tractor and skip the scraped knuckles and pinched fingers. See your dealer for the complete Quik-Knect system.

AutoConnect™ Drive-Over Mower Deck
Cuts grass down to size and is fast to connect: simply drive over the deck ramps, listen for two clicks as the deck and PTO attach, lock the gauge wheels, and you’re ready to mow.

Load-N-Go™ System
Simplifies transporting and servicing your AutoConnect™ drive-over mower deck. Use your loader to lift the deck for easy maintenance, then stow it quickly and safely out of the way.

Quik-Park™ Loader System
Transition to and from loader work fast. An integrated parking stand and secure locking system let you attach and detach your loader quickly and safely, no tools required.

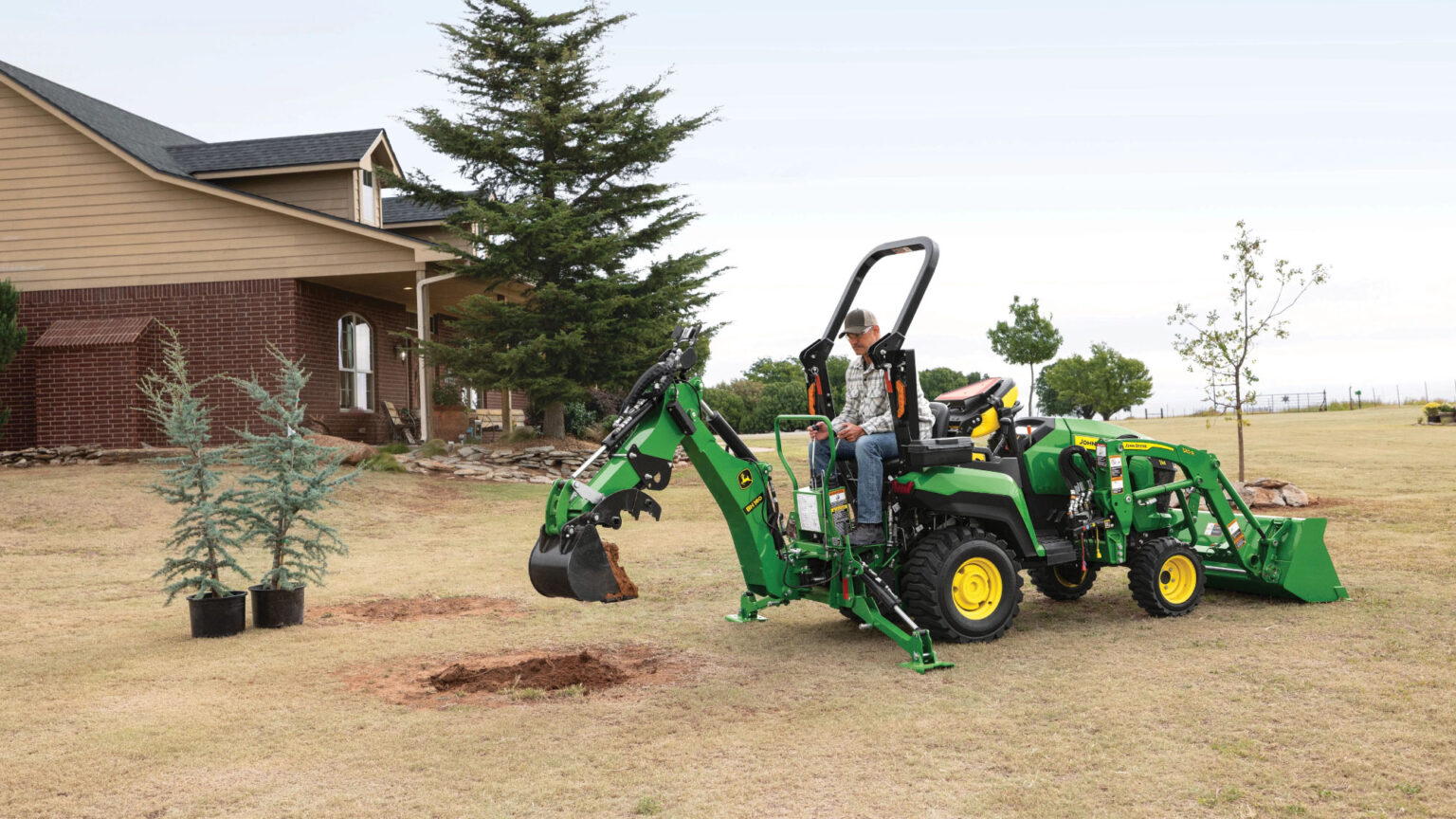

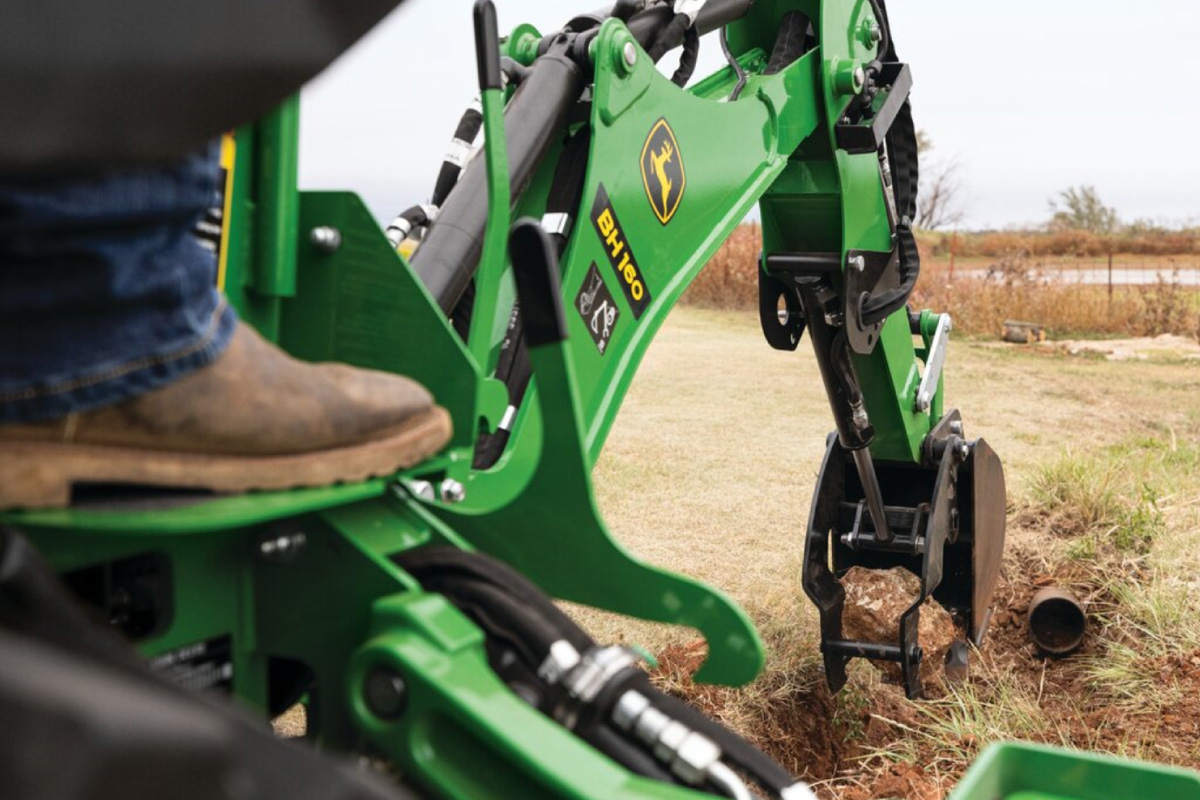

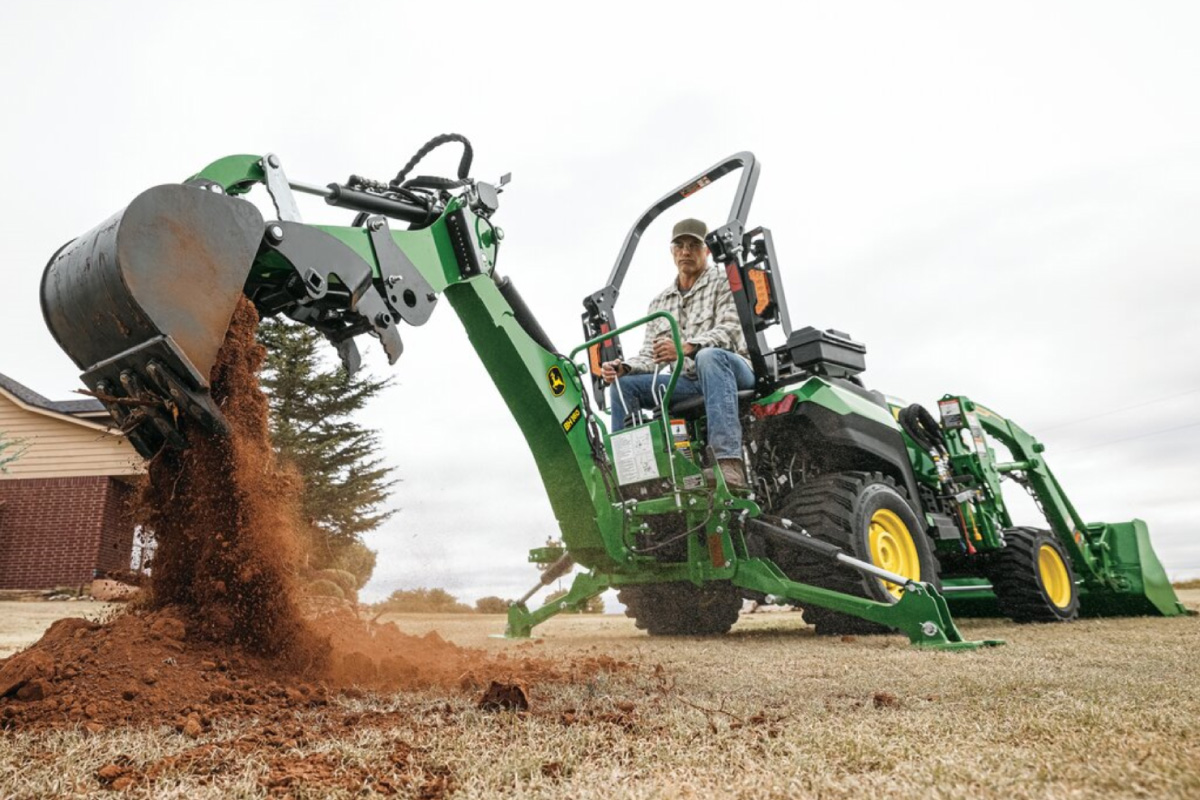

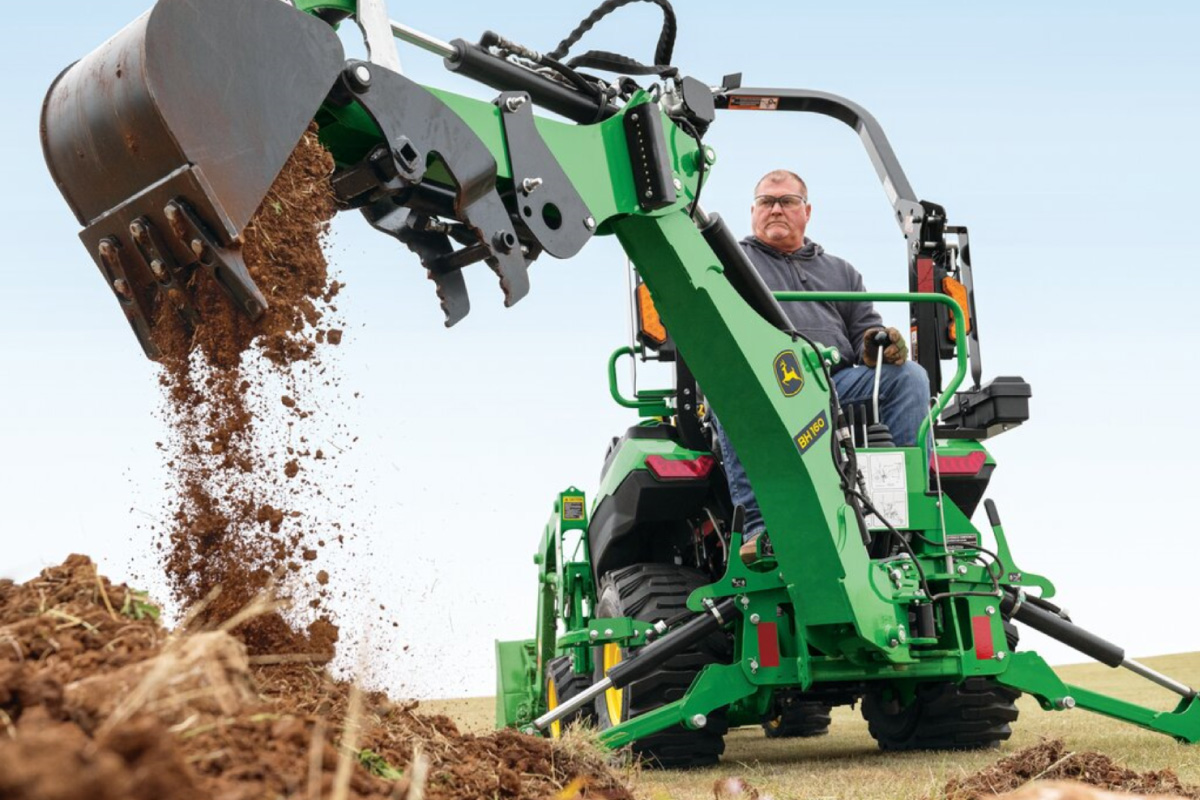

Quik-Park™ Backhoe
With the same tool-free attachment and removal as the Quik-Park loader, you can transform your tractor into a powerful digging and trenching machine. Includes stabilizer arms for balance, cushioned boom cylinders for smooth operation, and an optional thumb kit for handling rocks and logs.

iMatch™ Quick-Hitch
Provides easy hookup of Category 1 implements and attachments,5 so you can save time while taking the guesswork out of attaching and changing implements. Built with tubular, box-welded steel and heat-treated bushings and pins for durable, long-lasting performance.

Single Point Hydraulic Connector
Connects the front hydraulics of your 1 Series Tractor to your Quik-Park loader with the pull of a single lever. It’s that easy.
