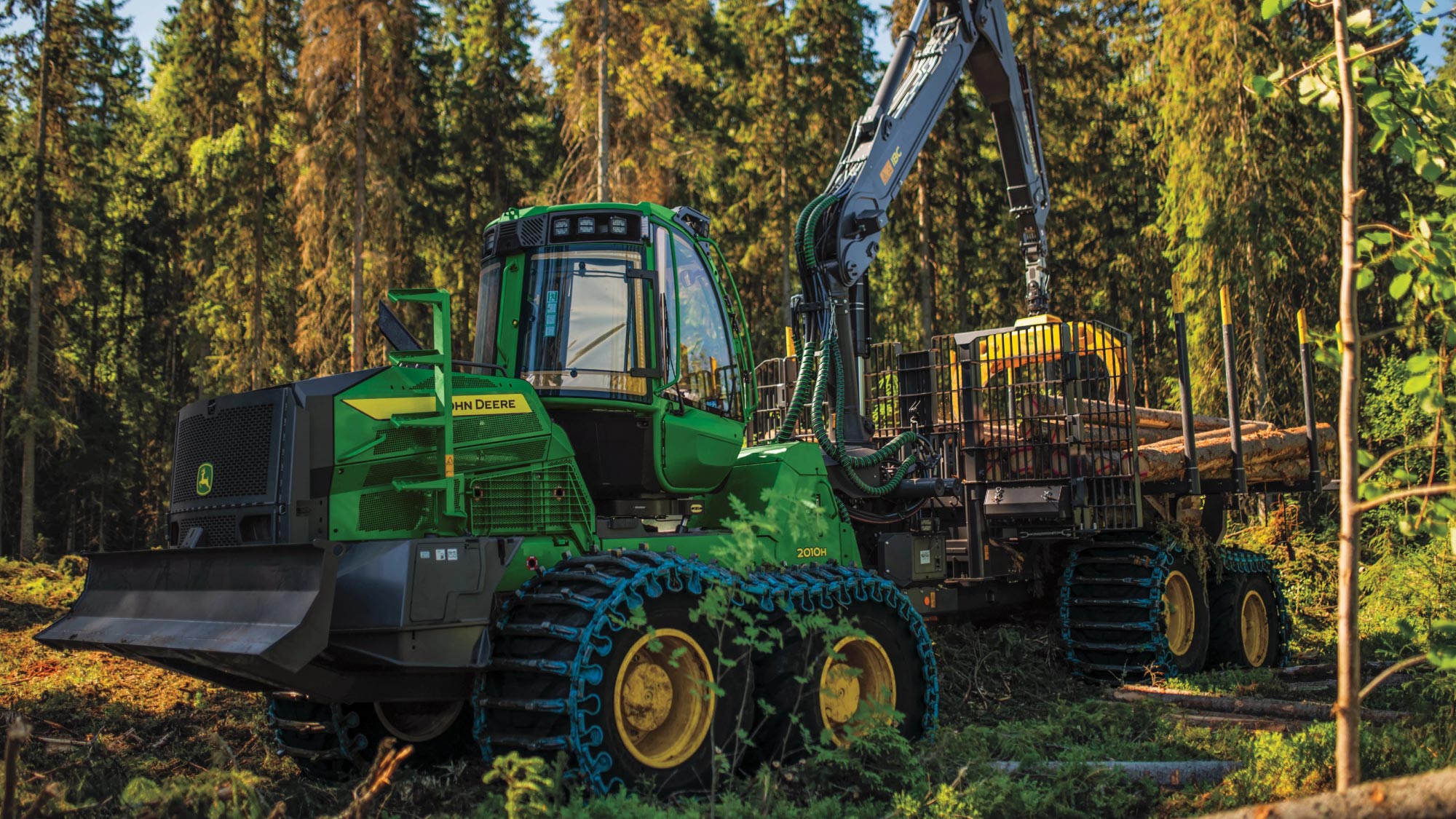

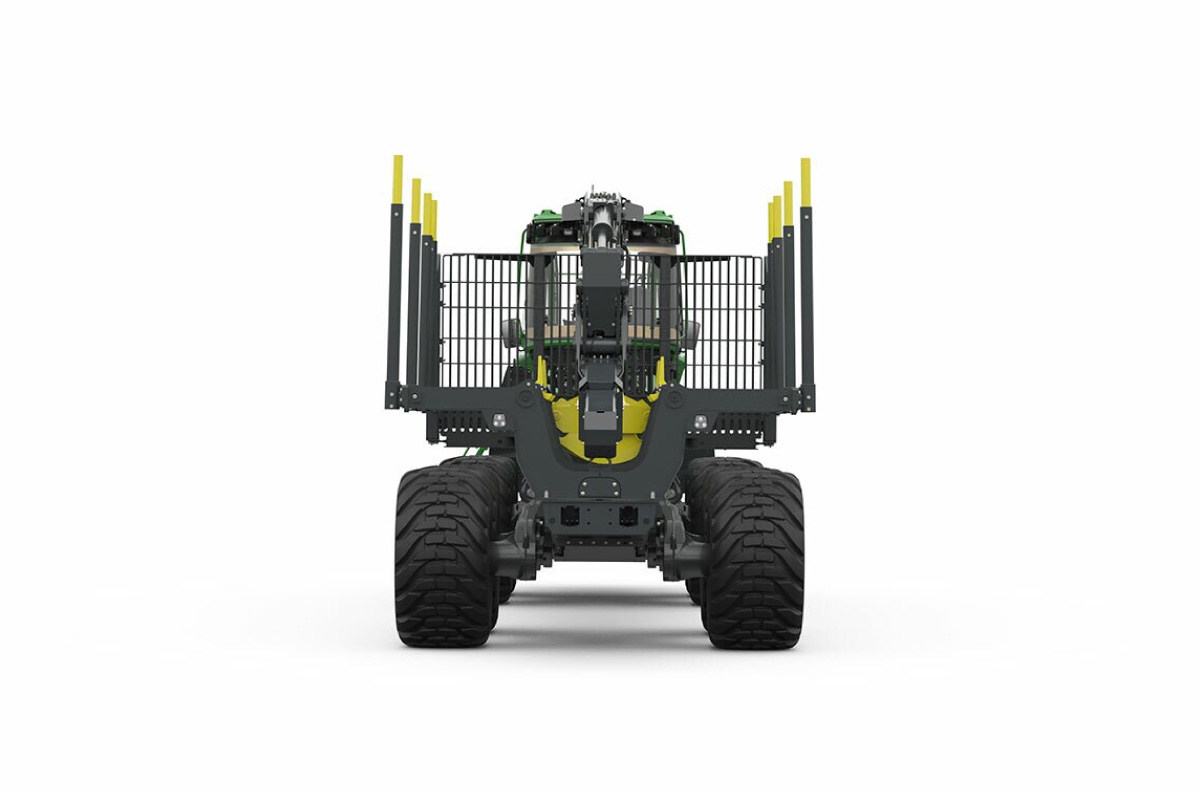

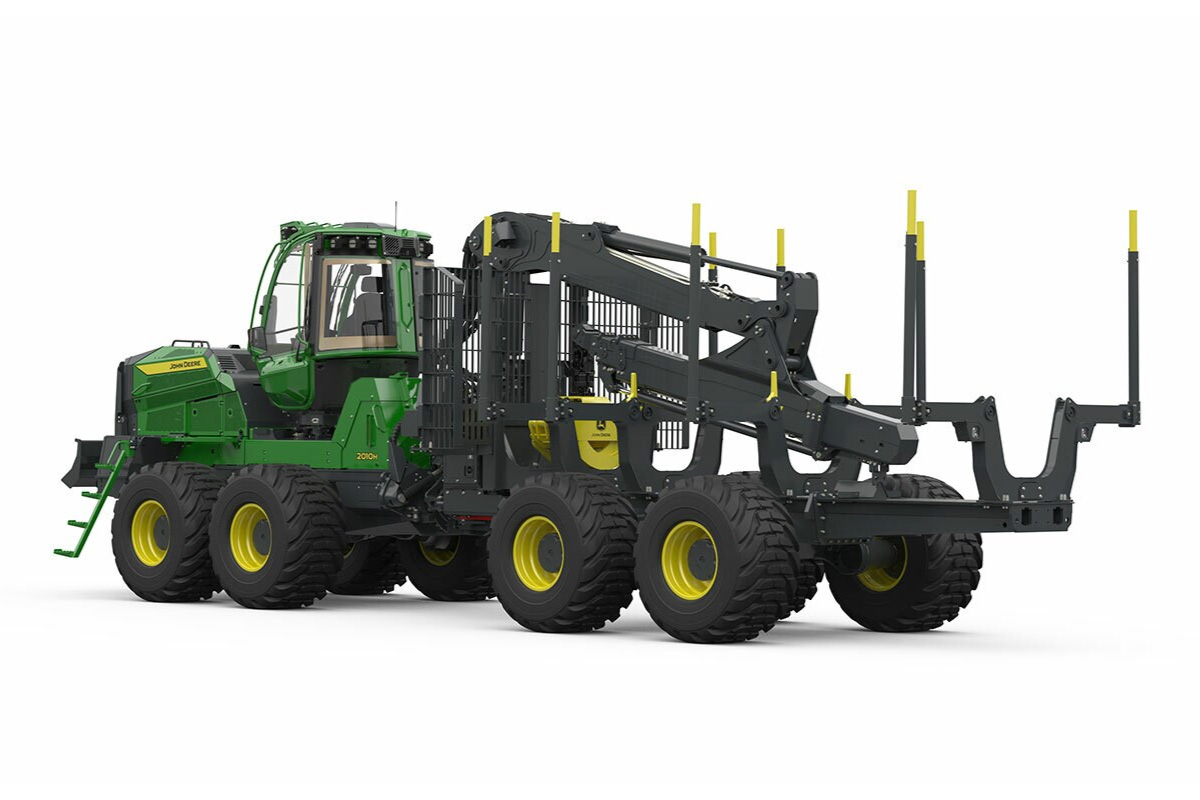

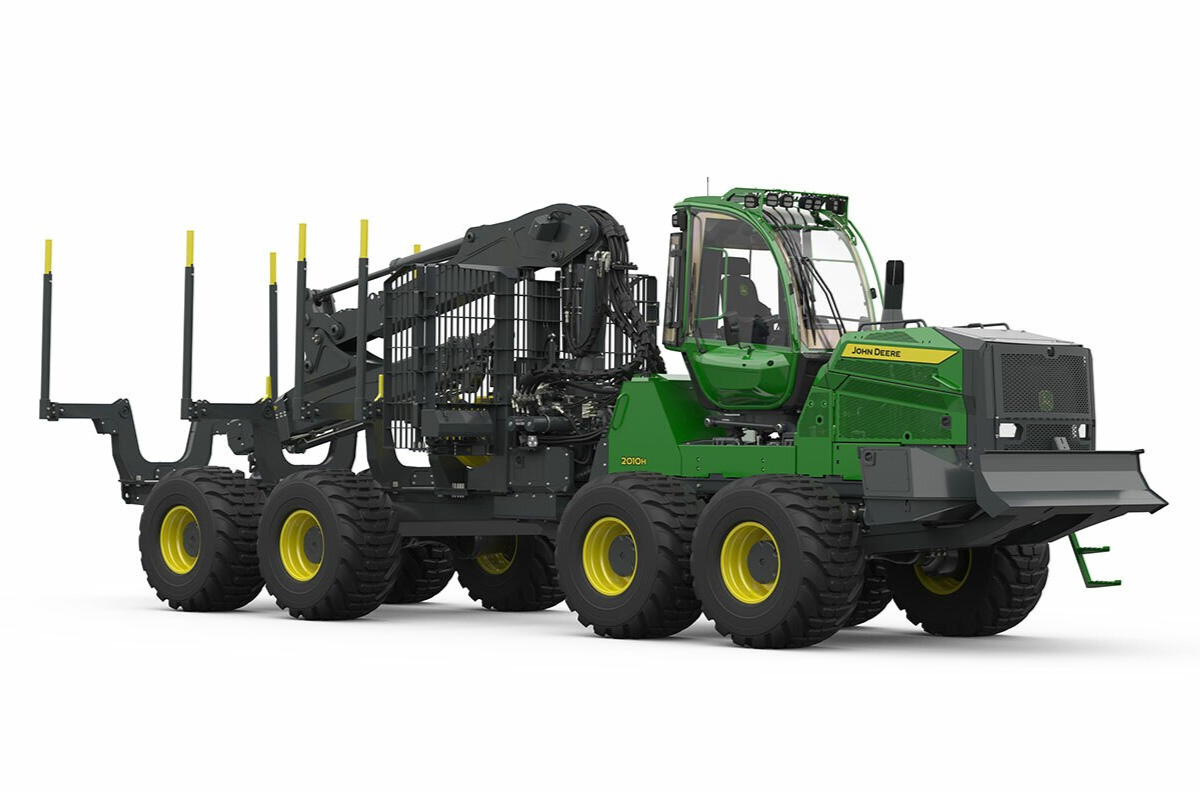

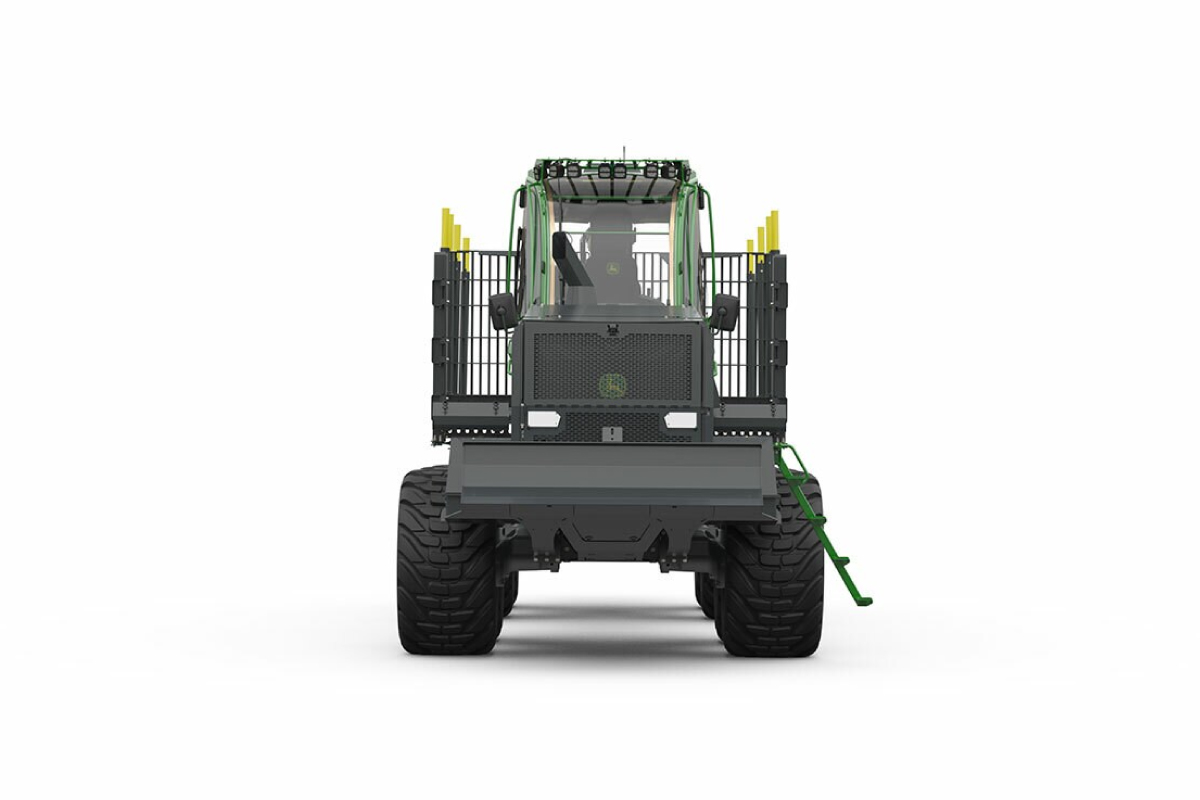

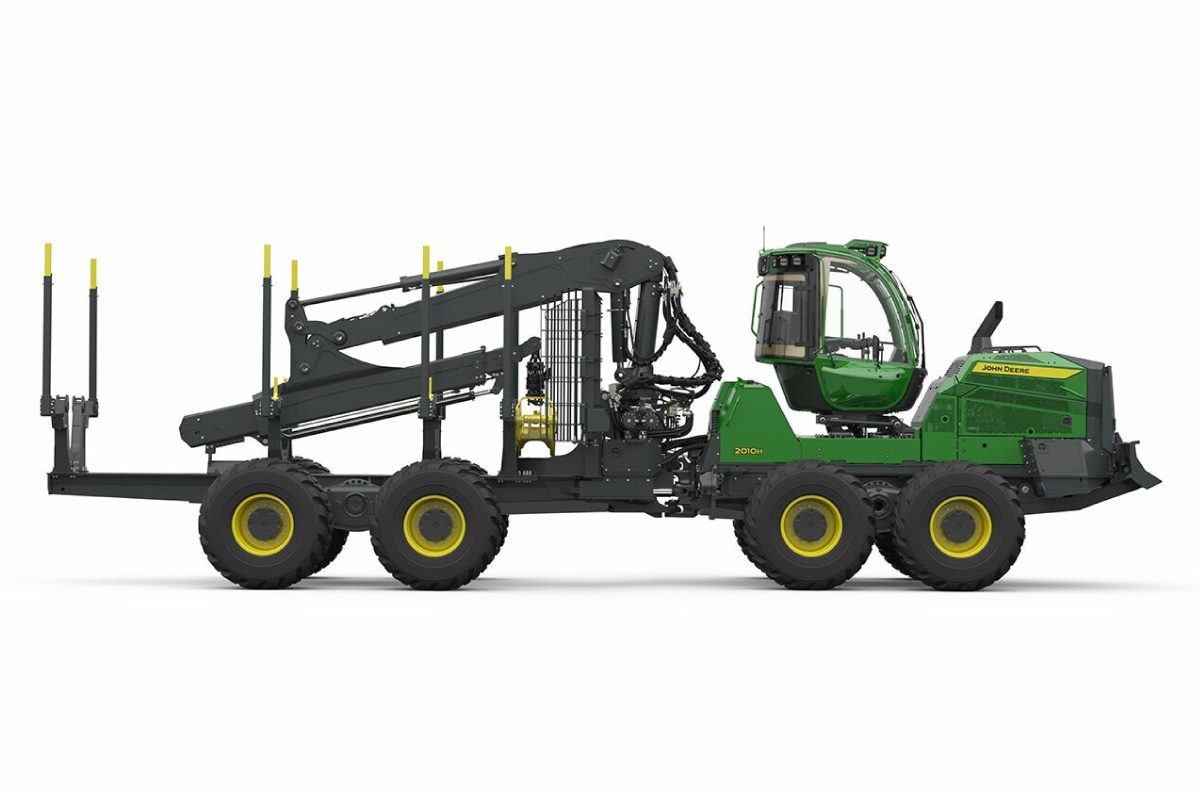

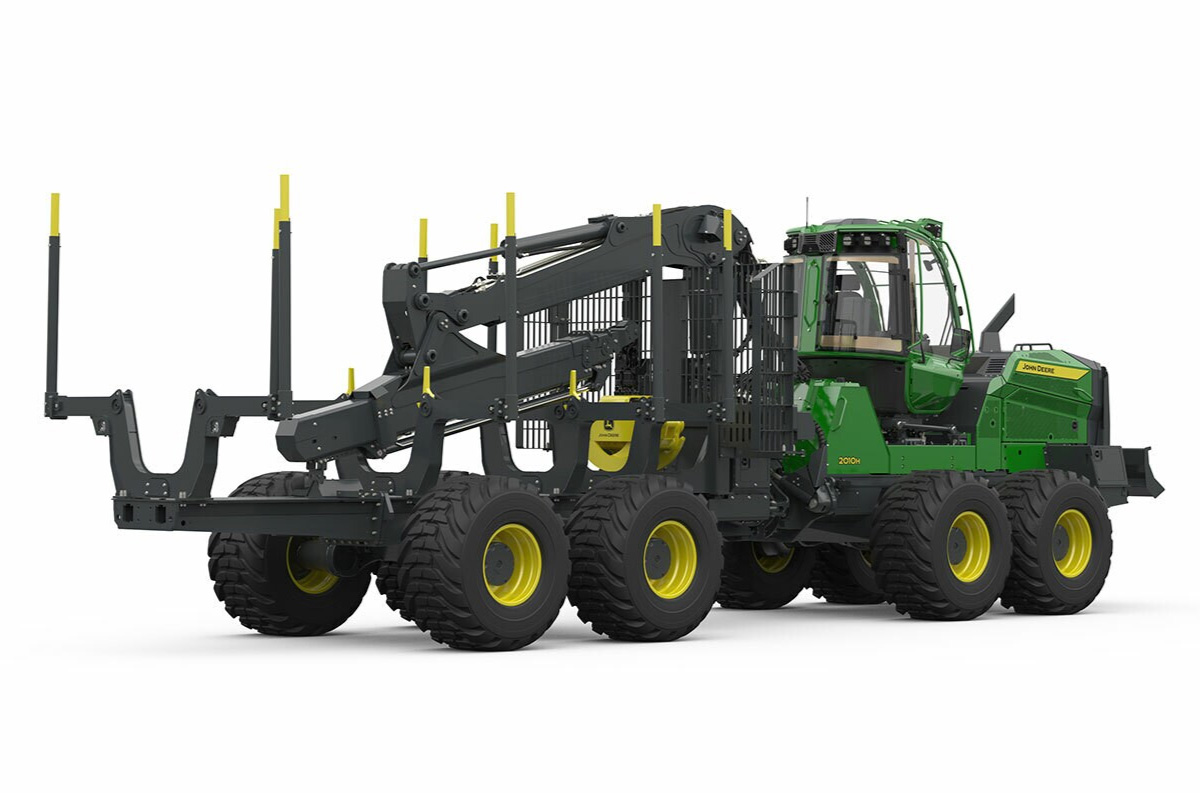

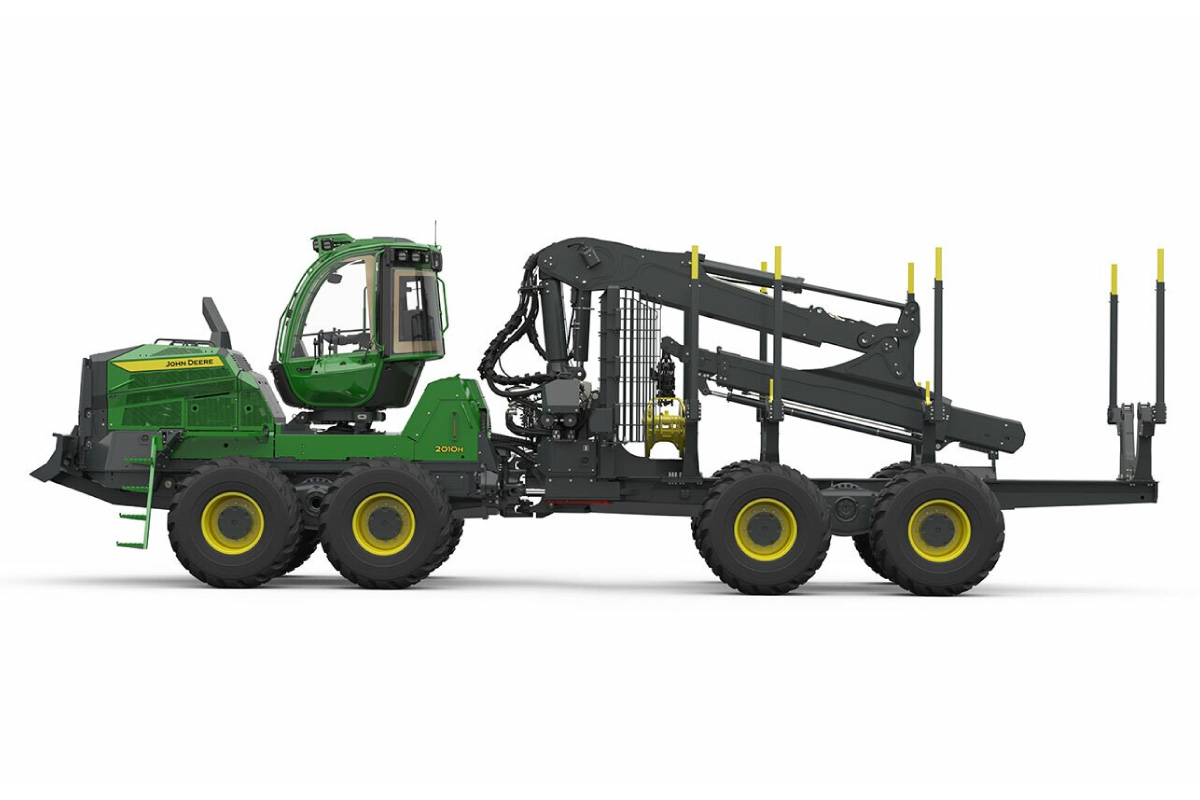

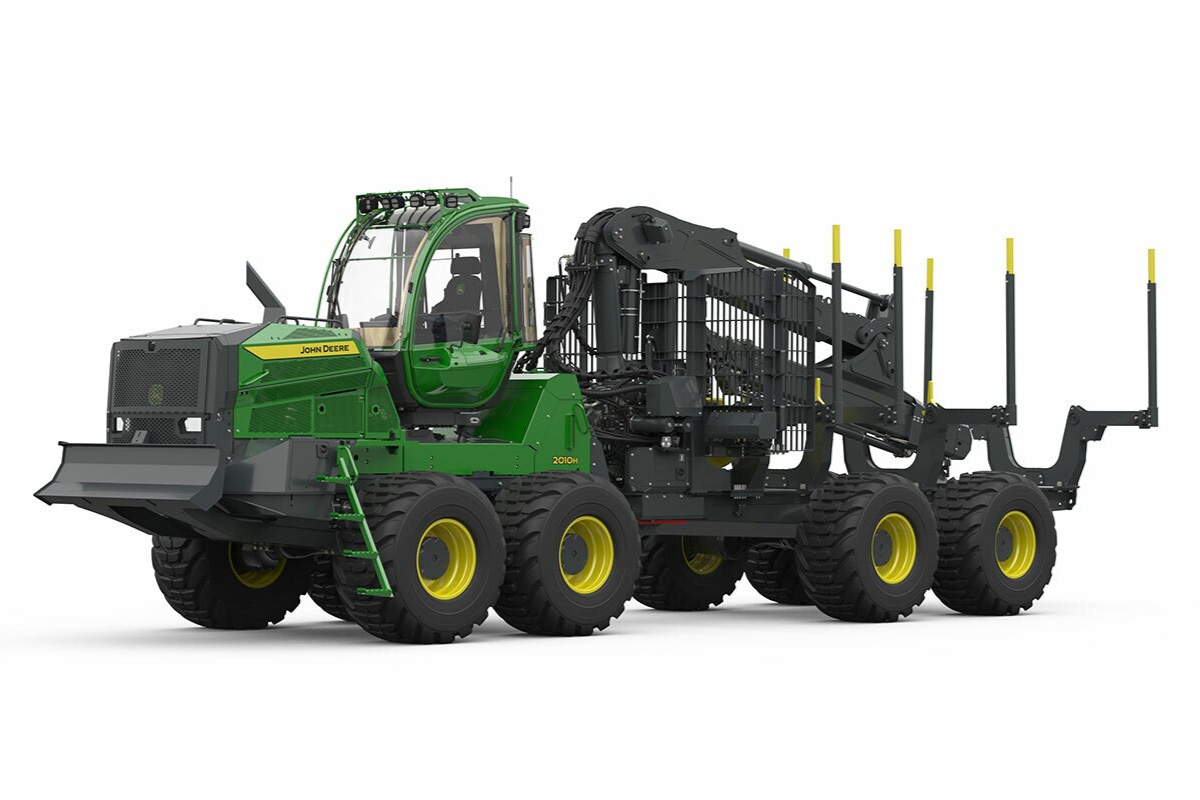

2010H Forwarder

The rotating and levelling cabin ensures the best visibility to the working area and ensures operator comfort in all conditions. It makes work smooth and integrates the different stages of the workflow seamlessly.

The most advanced Intelligent Boom Control makes boom use precise, fast and easy. IBC 3.0 is standard on H Series forwarders, enabling operators to use automatic boom movements.

With IBC 3.0, at the push of a button the boom is automatically folded to the transport position into the load space and unfolded from the transport position. The boom also automatically returns from the pile to the load space with a push of a button.

The new F9 and F10 booms offer more power and longer reach. The reach of the F10 boom is 10.2 meters. The F9 boom has a reach of 10.7 meters. The hydraulic hosing and hose routings have been improved. The new F10 is the strongest forwarder boom in the market. With the 40% increased boom lift torque and 22% higher slewing torque, larger grapple options become available. The new F9 boom has 13% more boom lift torque and 10% more slewing torque.

Balanced bogies with hub drives provide steady tractive force in all conditions. Intelligent drive control ensures performance and fuel economy.

The H Series takes operator comfort to a new level: a quiet cabin with a completely redesigned air conditioning system, Premium Audio sound system, wireless phone charging, food heater, fridge and smart storage spaces help the operator stay refreshed from the beginning to the end of the work shift.

The new forwarders have an increased load capacity and an expanded load area with two new size options with extendable bunks.

The 7.5m² load area option is optimal for handling heavy hardwood and eucalyptus logs, while the 8.5m² load area is recommended for the 2510H model with softwood.

Cylinder frame lock ensures stability in the H Series large forwarders at high driving speeds.

• Load Rating: 20 t
• Tractive force: 235 kN (6W) / 260 kN (8W)
• Power: 220 kW

• Max. reach: F9: 8.7 / 10.7 m, F10: 8.7 / 10.2 m
• Gross lifting torque: F9: 170 kNm, F10: 210 kNm
• Slewing torque: F9: 45 kNm, F10: 50 kNm
• Slewing angle: 380 °

• Length: 4.5 m, 5.5 m, 6.0 m, 6.5 m
• Cross-sectional area: 6.5 m², 7.5 m²

• Cylinder count: 6
• Displacement: 9 l
• Power: 220 kW @ 1600–1900 rpm
• Torque: 1 400 Nm @ 1200–1400 rpm

• Fuel tank: 380 l
• DEF-liquid tank: 28.5 l
• Hydraulic oil tank: 225 l

• Front tyres: 6W/8W 34″ / 26.5″, 28.5″
• Rear tyres: 26.5″, 28.5″

• Length: 10.7 m, 12.7 m
• Wheelbase: 5.9 m, 6.9 m
• Width from: 2.99 m
• Transport height from: 3.95 m
• Ground Clearance: 75 cm
• Weight 6W / 8W from: 25.5 t / 28.2 t
• Steering angle: ±44 °
