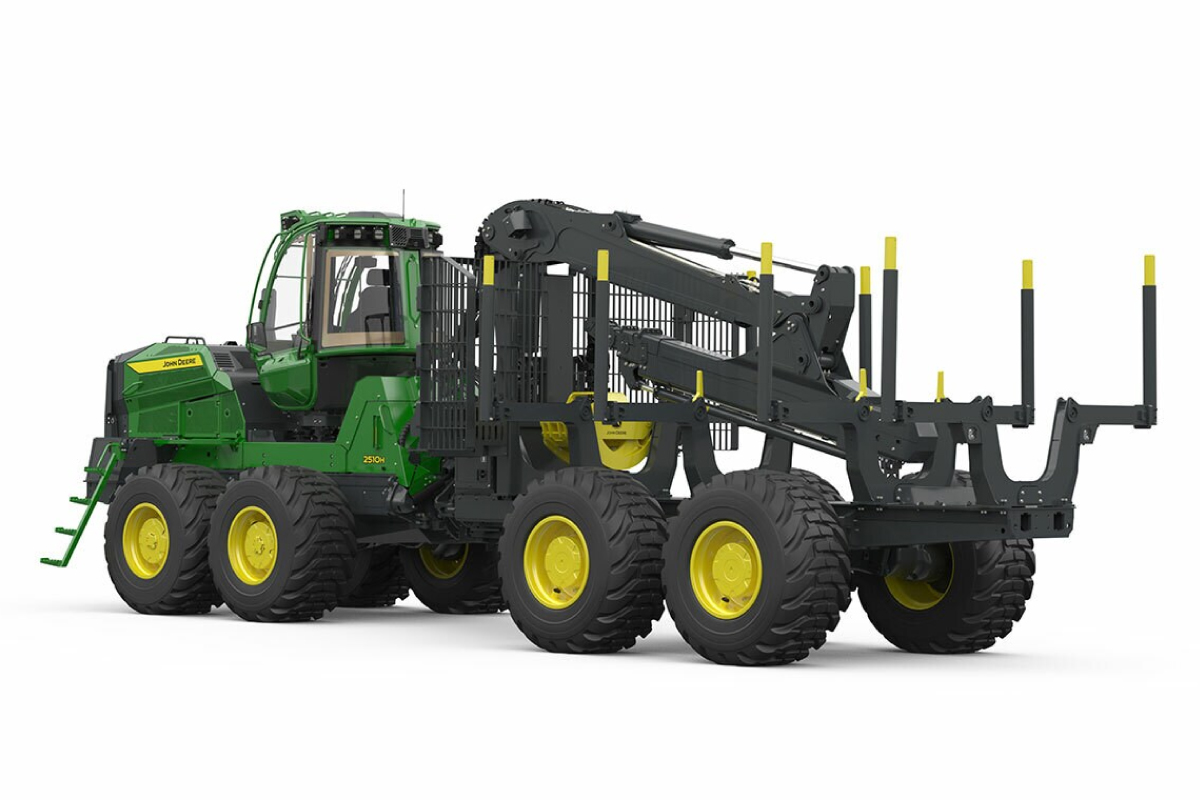

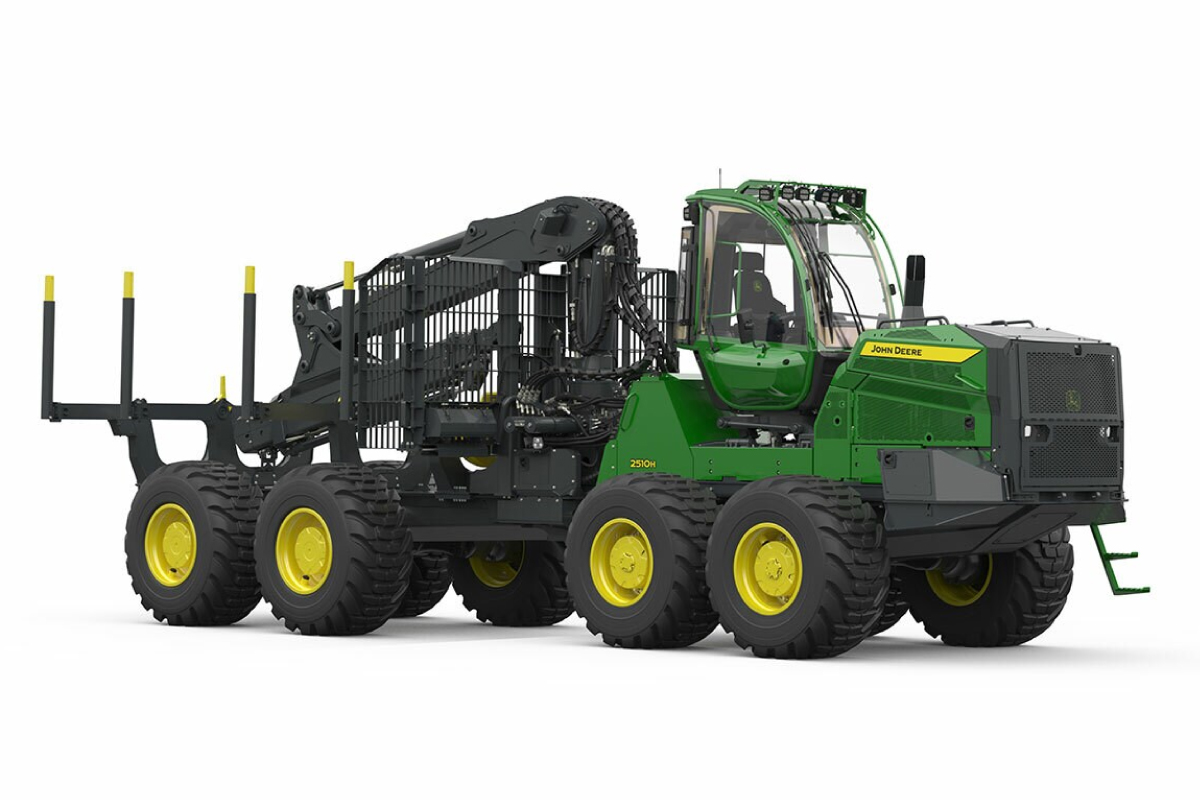

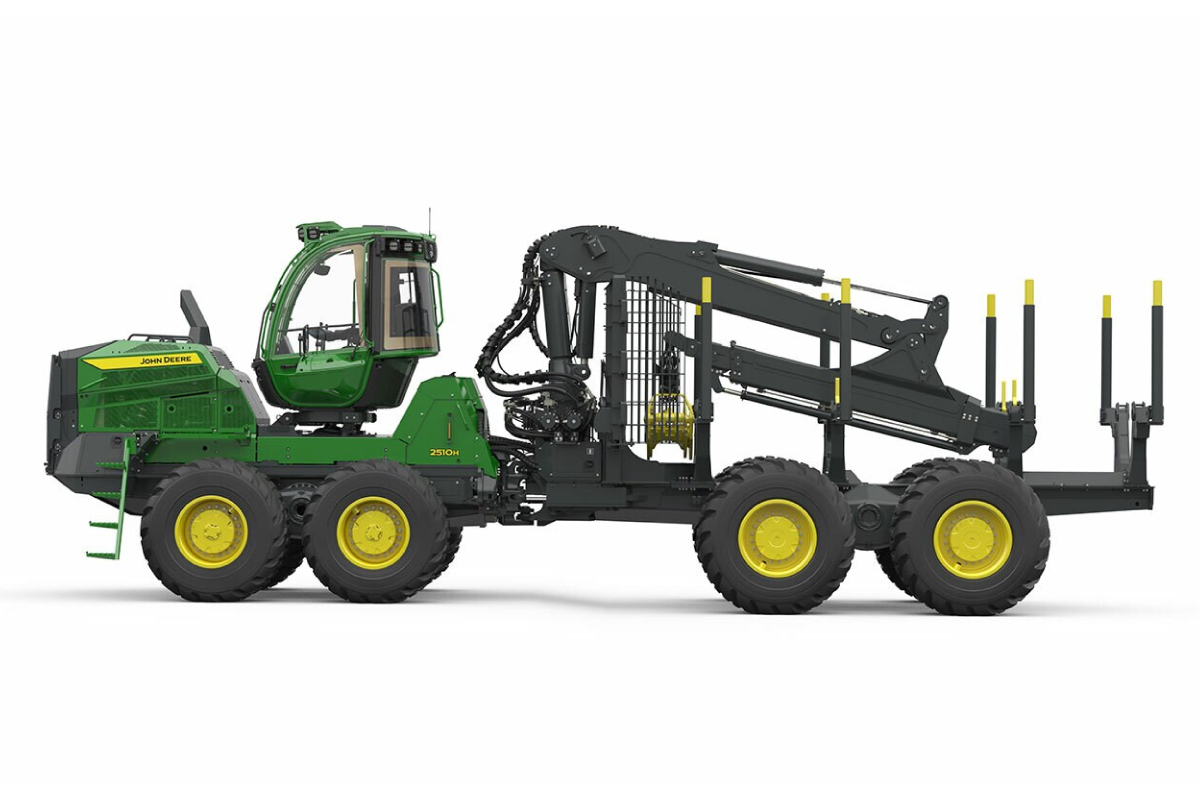

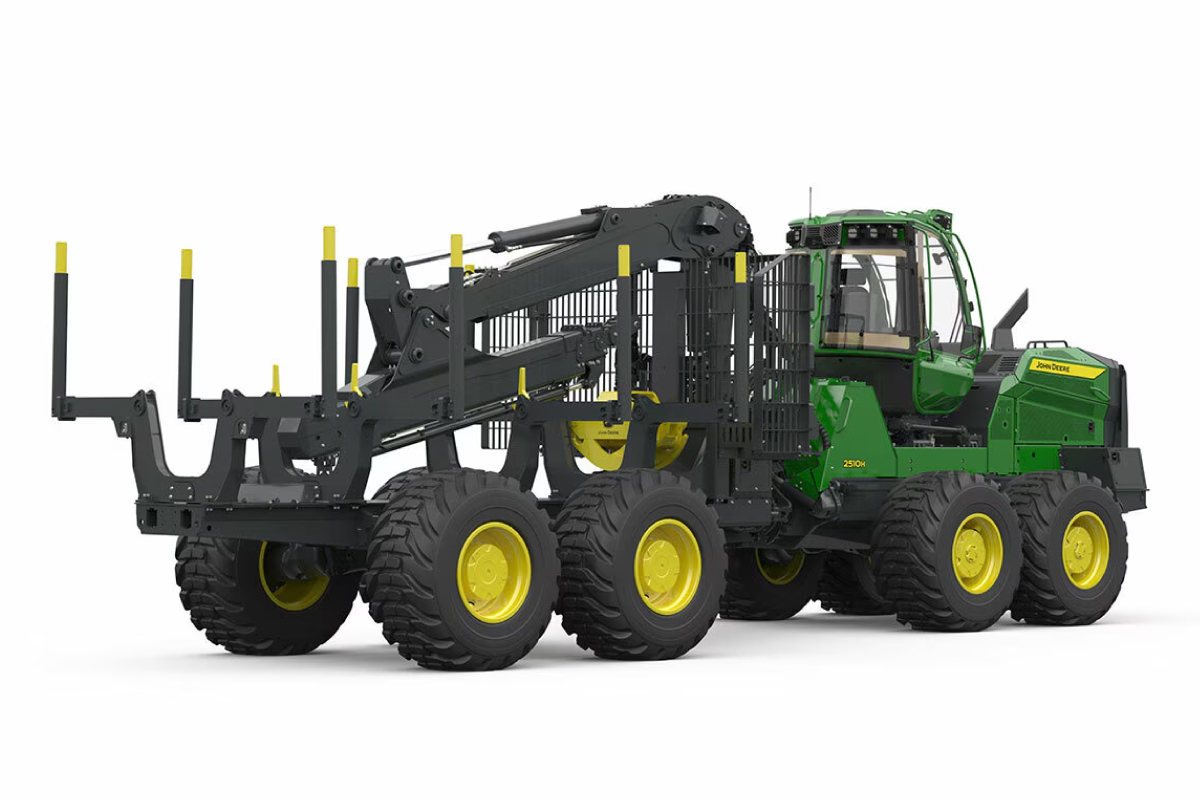

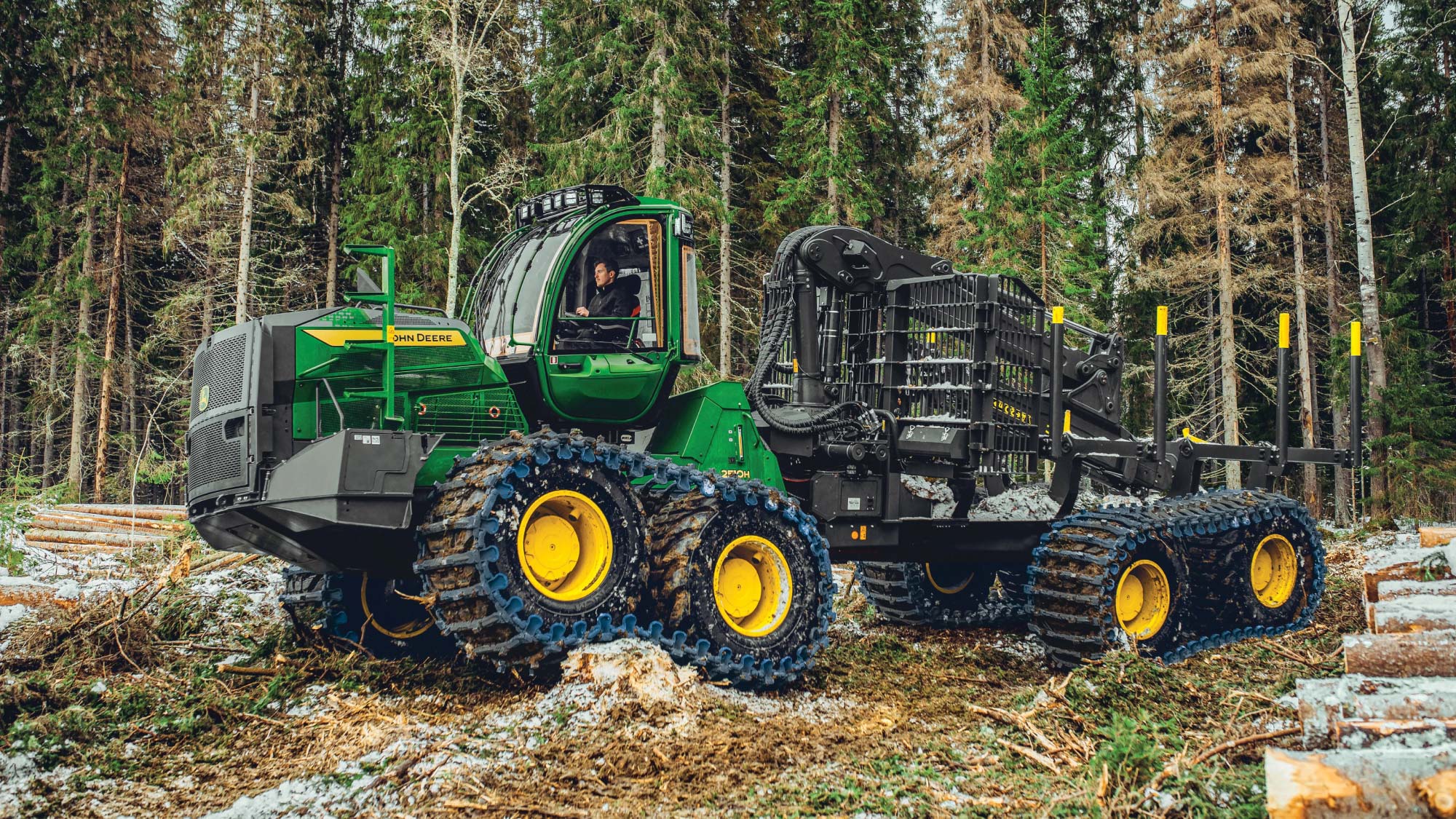

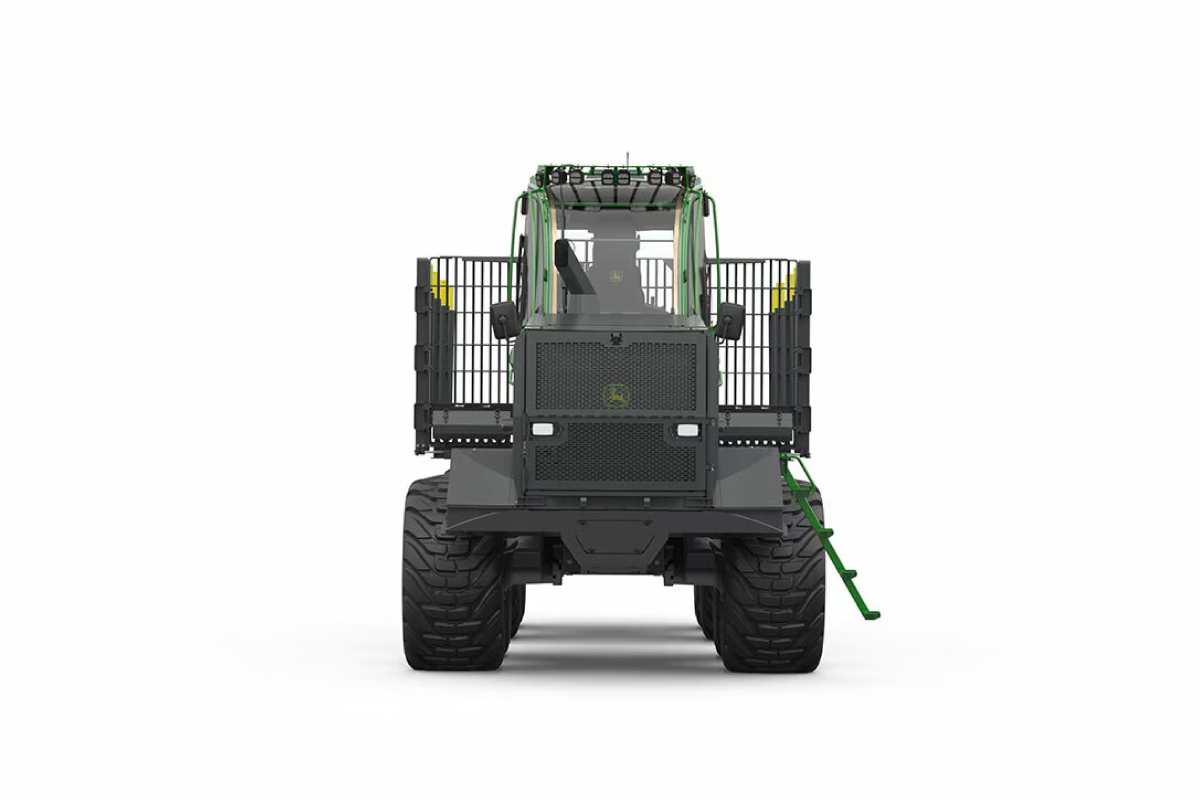

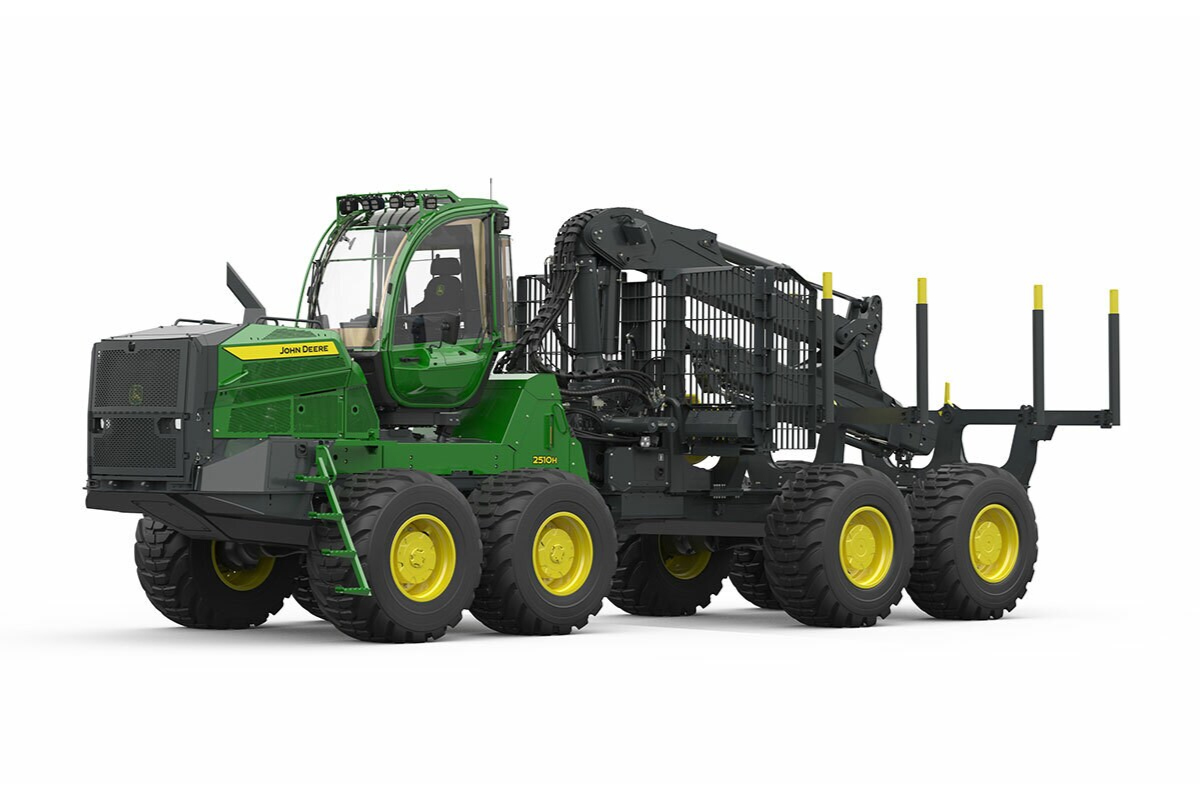

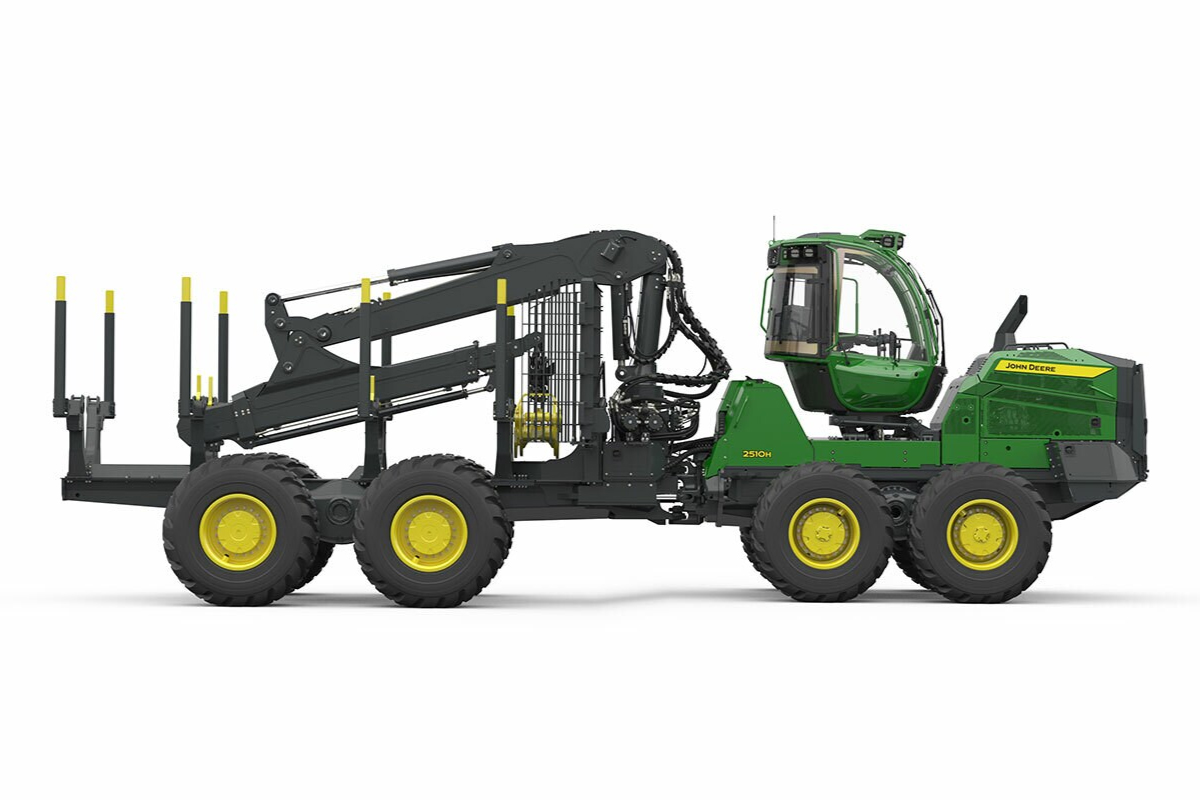

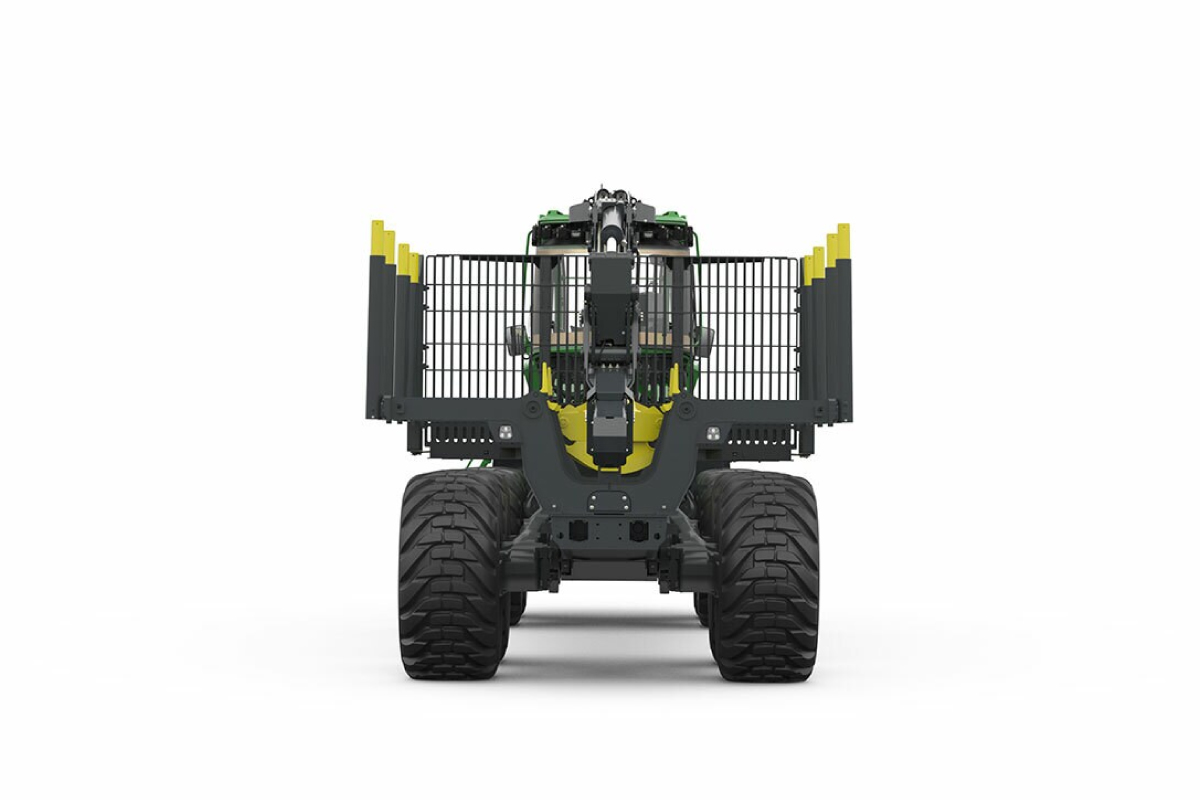

2510H Forwarder

The rotating and levelling cabin ensures the best visibility to the working area and ensures operator comfort in all conditions. It makes work smooth and integrates the different stages of the workflow seamlessly.

The most advanced Intelligent Boom Control makes boom use precise, fast and easy. IBC 3.0 is standard on H Series forwarders, enabling operators to use automatic boom movements.

With IBC 3.0, at the push of a button the boom is automatically folded to the transport position into the load space and unfolded from the transport position. The boom also automatically returns from the pile to the load space with a push of a button.

The new F9 and F10 booms offer more power and longer reach. The reach of the F10 boom is 10.2 meters. The F9 boom has a reach of 10.7 meters. The hydraulic hosing and hose routings have been improved. The new F10 is the strongest forwarder boom in the market. With the 40% increased boom lift torque and 22% higher slewing torque, larger grapple options become available. The new F9 boom has 13% more boom lift torque and 10% more slewing torque.

Balanced bogies with hub drives provide steady tractive force in all conditions. Intelligent drive control ensures performance and fuel economy.

The H Series takes operator comfort to a new level: a quiet cabin with a completely redesigned air conditioning system, Premium Audio sound system, wireless phone charging, food heater, fridge and smart storage spaces help the operator stay refreshed from the beginning to the end of the work shift.

The new forwarders have an increased load capacity and an expanded load area with two new size options with extendable bunks.

The 7.5m² load area option is optimal for handling heavy hardwood and eucalyptus logs, while the 8.5m² load area is recommended for the 2510H model with softwood.

Cylinder frame lock ensures stability in the H Series large forwarders at high driving speeds.

The TimberMatic H operating system is easy to use and visual. The precise location of stems at the logging site and the progress of the work are displayed on the map in real-time. Intelligent diagnostics take care of the machine’s performance.

An operator-specific key makes for an easy start to the work shift. As soon as the operator unlocks the door with the remote key, the computer and the control system start up. The personalized configurations are automatically enabled, and the machine is ready for work as soon as the operator climbs into the cabin.

The machine has fewer individual maintenance tasks and centralized, easy-to-access service points. It’s equipped with an engine oil level sensor, allowing the control system to indicate low engine oil levels. Centralized grease points and optional automatic lubrication save time.

• Load Rating: 25 t
• Tractive force: 290 kN
• Power: 252 kW

• Max. reach: F9: 8.7 / 10.7 m, F10: 8.7 / 10.2 m
• Gross lifting torque: F9: 170 kNm, F10: 210 kNm
• Slewing torque: F9: 45 kNm, F10: 50 kNm
• Slewing angle: 380 °

• Length: 4.5 m, 5.5 m, 6.5 m
• Cross-sectional area: 6.5 m², 7.5 m², 8.5 m²

• Cylinder count: 6
• Displacement: 9 l
• Power: 252 kW @ 1600–1900 rpm
• Torque: 1 550 Nm @ 1200–1400 rpm

• Fuel tank: 380 l
• DEF-liquid tank: 28.5 l
• Hydraulic oil tank: 225 l

• Front tyres: 28.5″
• Rear tyres: 30.5″

• Length: 10.7 m, 12.7 m
• Wheelbase: 5.9 m, 6.9 m
• Width from: 3.20 m
• Transport height from: 3.95 m
• Ground Clearance: 78 cm
• Weight 6W / 8W from: 29.8 t
• Steering angle: ±44 °
