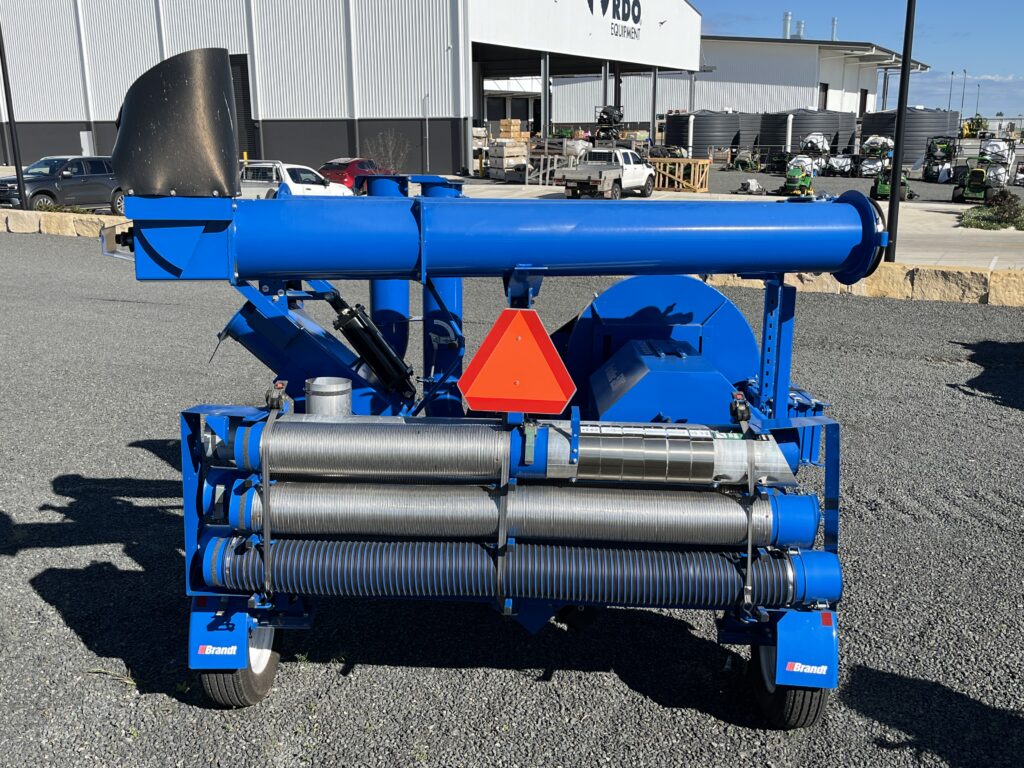

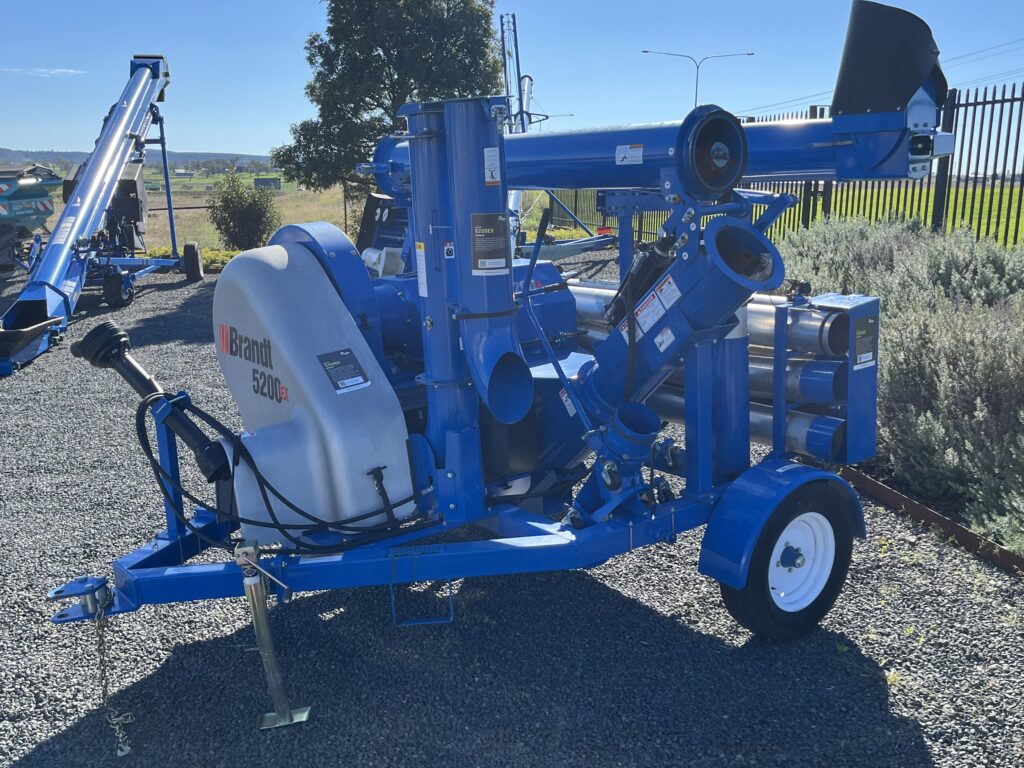

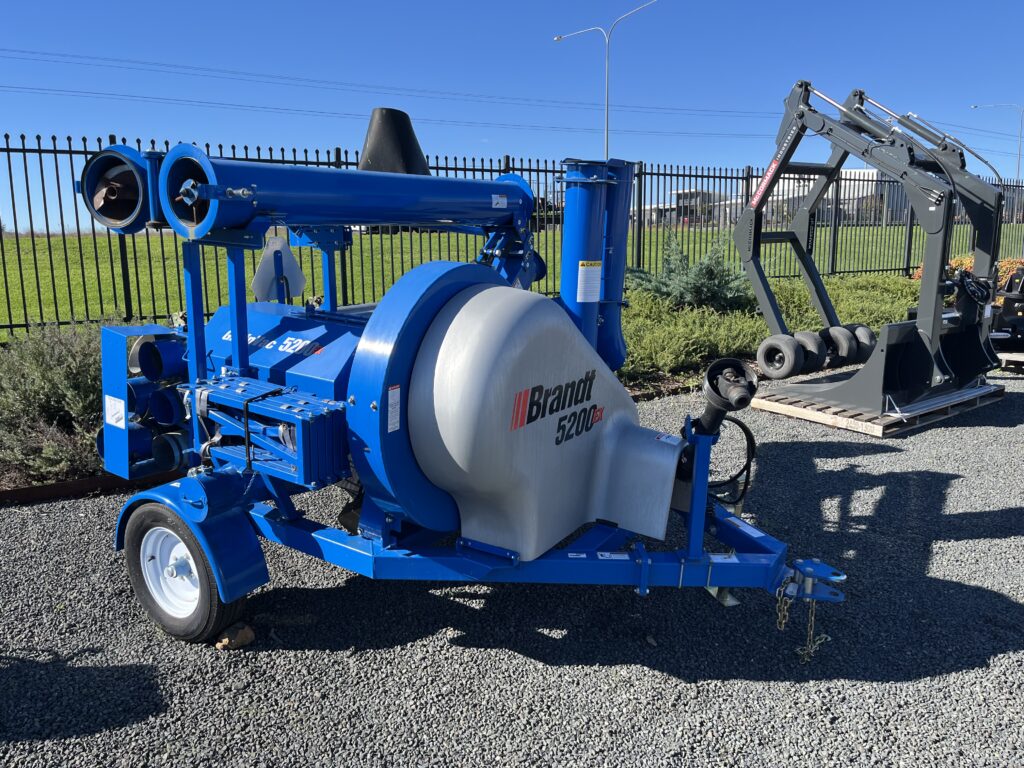

2022 Brandt 5200E Grain Vac – X174184

Product Overview

The Brandt 5200EX is a dependable and efficient workhorse capable of moving 140T per hour with only 70 horsepower. Built with accessibility and convenience at the forefront the Brandt 5200EX GrainVac’s low profile design saves you valuable time by allowing you to monitor truck load level from inside the bin.

Low Profile Design

• Built with accessibility and convenience at the forefront the Brandt 5200EX GrainVac’s low profile design saves you valuable time by allowing you to monitor truck load level from inside the bin.

Air Throttle

• The 5200EX’s carefully engineered Air Throttle uses an adjustable spring loaded air flow restrictor to minimize engine swells. This ultimately results in less fuel consumption and tractor engine stress.

Easy to Use and Maintain

• Hydraulic folding unload auger is effortlessly operated from the tractor cab, and can be folded or unfolded while in position at the bin. A new “grease bank” allows servicing of all bottom bearings from one easy access side mounted point. An electronic tachometer/hour meter ensures optimum PTO speed, and regular maintenance intervals while a standard gas shock assist provides easy access to the GrainVac body.

Fully Adjustable Bin Snake

• The 5200EX optional Bin Snake supports the GrainVac hose, keeping it straight and reducing airflow restriction. This maximizes capacity and allows for easier hose positioning.

Chaffer Screens

• By using two chaffer screens the 5200EX gently separates the grain from the air stream. The air is then exhausted while the grain falls into the auger intake that fills your truck.

Full Flow Steel Exhaust

• The full flow 8 inch steel exhaust improves airstream efficiency. It is able to rotate 360 degrees to direct debris away from the operator and hinges downward for transport.
