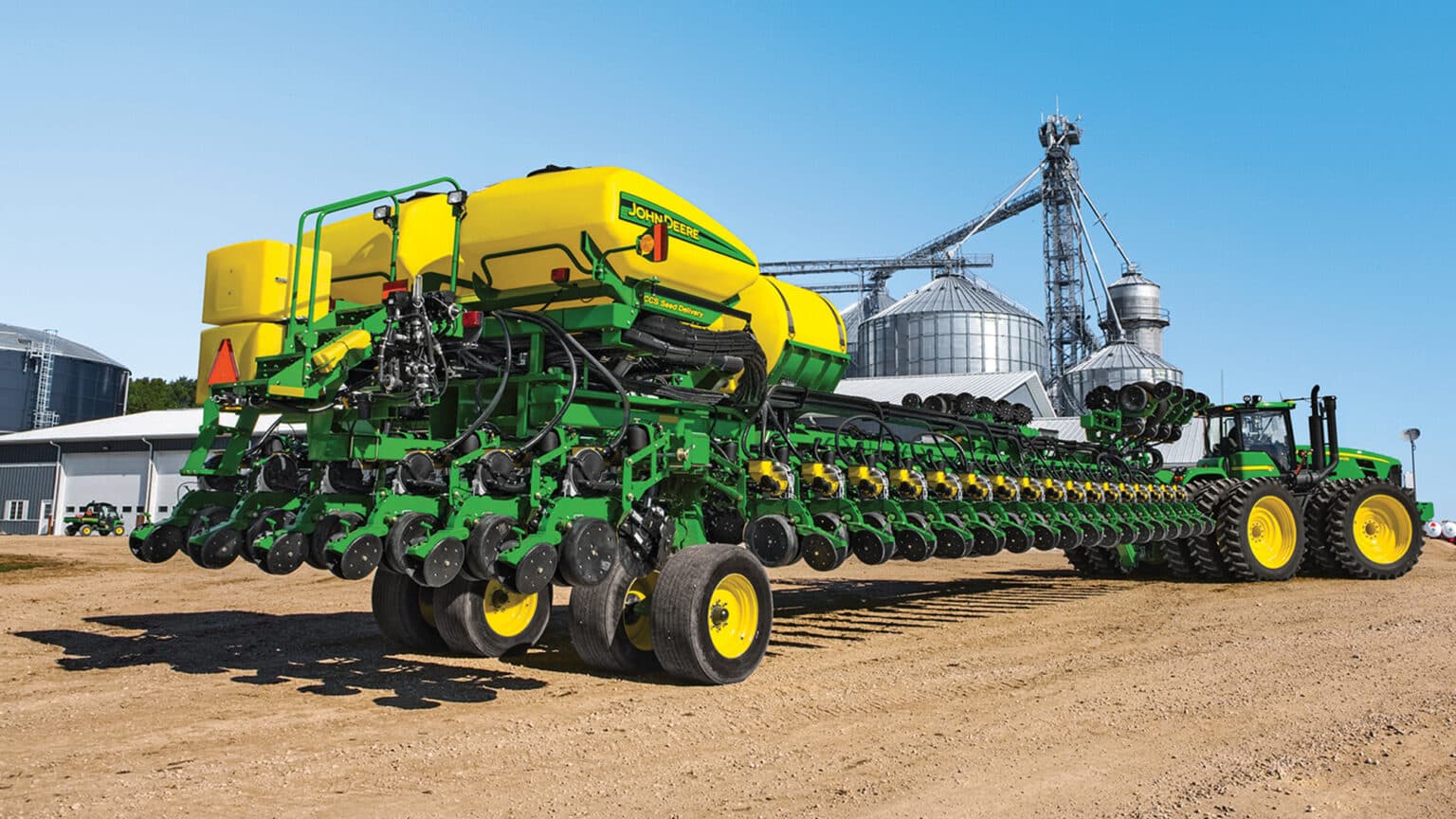

Planter

  • 120 ft. (36.58 m) toolbar with 48 rows on 30 in. (762 mm) spacing
  • Available in mini-hopper MaxEmerge™ 5 row unit
  • Requires a minimum 276 kW (370 hp) tractor with Category 5 drawbar and five hydraulic SCVs plus power beyond
JOHN DEERE

Features


Downforce system options

Heavy-duty adjustable downforce springs

Planter row-unit downforce is an important factor to ensure consistent and proper depth control. The heavy-duty adjustable downforce feature provides up to 181.4 kg (400 lb) of downforce. There are four settings available to allow the operator to choose the amount of downforce required for the condition: 0 kg (0 lb), 56.7 kg (125 lb), 113.4 kg (250 lb), and 181.4 kg (400 lb).

RowCommandâ„¢ individual-row control system

RowCommand controls seed output

Controlling input costs and improving productivity are key producer requirements today. RowCommand is an effective, integrated John Deere solution designed to meet these intensifying needs. The RowCommand system manages seed output, reduces yield drag, and improves harvest capabilities on all Pro-Shaft™ driven row-units, and chain-driven MaxEmerge 5.

Seed variable-rate drive (VRD) with half- or three-width disconnect

The seed variable-rate drive provides the ultimate planting productivity by utilizing one, two or three hydraulic motors (varies by model) to turn the seeding drive shaft. Hydraulic control of the seeding drive allows for on-the-go seeding rate changes right from the display mounted inside the tractor cab.

Combine this seeding flexibility with the map-based planting option, and seeding rates adjust automatically based on a prescription map.

Central Commodity System (CCSâ„¢) seed delivery system

CCS seed delivery adds productivity through increased seed capacity, bulk fill capability, and easy, thorough cleanout.

The two tanks have a combined capacity of 2466.7 L (70 bu) on 9.1-m (30-ft) planters and 3523.9 L (100 bu) on 12.2-m (40-ft) and larger planters. CCS tanks are manufactured using a rotomolded, polyethylene design to ensure maximum durability. The translucent tanks allow easily viewing the amount of seed in the tanks. The tanks are separated by 54.6 cm (21.5 in.) for enhanced rear visibility during transport and backing.
