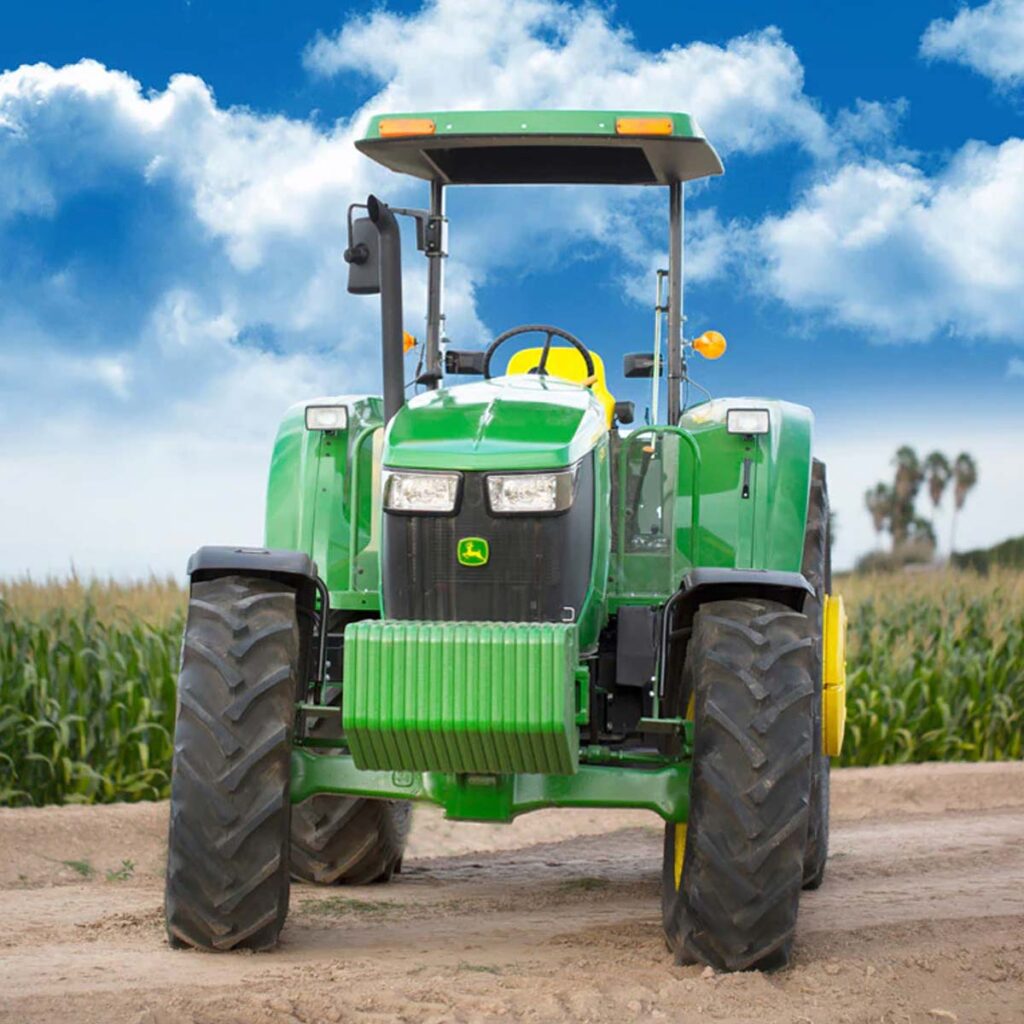

Utility Tractor

  • PowerTech™ E (Tier 3) 4.5L (276 cu in.)
  • Category 2, 3-point hitch
  • MFWD / 2WD
  • Open station / cab

6E Series Tractor: ATU compatible with open station and cab Tractors

The 6E utility tractor is the ideal choice for everything you need in the field. Technology, innovation and comfort now in your hands. Improve throughput, increase profitability and enjoy a new model designed specifically for more precision and comfort in your operations.

JOHN DEERE

Features


Precision Ag Technology options available

The 6E Series Cab Tractors can be equipped (factory installed) with AutoTrac automatic guidance system, available in the following configuration: AutoTrac Universal.

The AutoTrac system can greatly reduce a producer’s costs by eliminating over pass, providing great economy in fuel consumption, and improving the efficiency of many other inputs such as fertilizers, seeds, and chemicals. It allows the adoption of precision agriculture systems, such as variable rate, controlled traffic, etc.

John Deere value benefits:

  • Large reduction in supply and fuel costs
  • Increased efficiency in area usage
  • Excellent for nighttime operations
  • Facilitates operator’s work
  • Alignment with all ag operations such as tillage, planting, spraying, and harvesting, allowing reduction in losses during harvest and crop care operations

Features and benefits profile

John Deere diesel engines
  • Tier 3 engine available in the 6100E, 6115E, and 6130E.
  • 4-cylinder 4.5L PowerTech™ E engine turbocharged intercooled for 6100E, 6115E, and 6130E models.
  • Under-hood muffler allows for reduced sound levels, a clean hood profile, and excellent visibility.
Transmissions
  • Four 30K transmissions available to match producers’ needs:
    • Twelve forward/ four reverse (12F/4R) top shaft synchronized (TSS) with wet clutch
    • 24F/8R TSS Hi-Lo with wet clutch
    • 12F/12R PowrReverser™ wet clutch
    • 24F/12R PowrReverser Plus wet clutch
  • Special 40K transmission to work faster available in:
    • 24F/12R PowrReverser Plus wet clutch
Heavy-duty two-wheel drive (2WD) front axle
  • The two-wheel drive (2WD) front axle is manufactured from heavy-duty nodular cast iron for superior strength and durability and is available in the 6100E and 6115E.
Mechanical front-wheel drive (MFWD) (optional)
  • The caster action front-wheel drive design permits wheels to tilt and tuck under tractor chassis to achieve sharp turns. It improves stability and steering accuracy and provides positive turn traction and allows a maximum 52-degree turn angle.
  • Inboard planetary final drives
  • Distributes axle load equally over three points. Reduces stress on individual gears and shafts for increased reliability
Hydrostatic power steering
  • Hydrostatic steering provides optimum performance and efficiency in all operating conditions with minimal effort.
Open-center hydraulic system
  • All 6E Series Tractors feature a gear-driven, open-center (constant-flow) hydraulic system with a maximum pressure of 19,500 kPa (2830 psi), with a rated flow to the rear selective control valves (SCVs) of 73.2 L/min (19.1 gpm).
Joystick control lever
  • Optional mid-mount valve with joystick allows multiple functions to be performed by one lever, which is especially useful for loader operations.
Category 2, 3-point hitch
  • Features a rugged, Category 2, 3-point hitch designed to SAE standards, to accommodate demanding implement draft and lift requirements, plus a Category 2 drawbar to tackle the toughest drawbar loads
Top adjustable swinging drawbar
  • Equipped with an in-base Category 2 swinging drawbar, which allows the operator to slide the drawbar to one side for power take-off (PTO) operations, especially useful with hay equipment
  • Independent 540/1000 rpm PTO
  • Easily switch between 540 and 1000 rpm-driven implements simply by removing the stub shaft and reversing its position
Mechanically actuated wet-disk brakes
  • Smooth braking
  • Longer life
Differential lock
  • Maximizes traction
Operator’s station
  • Both cab and open operator station (OOS) platforms offer easy, uncluttered access to all tractor and implement controls.
  • The controls are ergonomically located and color coded, giving the operator natural and logical command of all functions.
Fixed or foldable Roll-Gard™ rollover protective structure (ROPS)
  • The foldable Roll-Gard can be adjusted from the seat. The tractor will fit under standard 203.2-cm (80-in.) door openings. The tractor’s height with fixed ROPS is around 254 cm (100 in.), depending on the wheel size.
Factory-installed cab
  • A ROPS-certified, factory-installed cab is available to all operators. The cab provides protection from heat and cold, wind, noise, and offers a climate-controlled environment. The cabs are also assembled to the tractor chassis as a complete unit mounted on composite isolators.
Standard seat for open operator station (OOS) tractors and deluxe seat for cabs
  • Vinyl standard seats are fully adjustable fore/aft and weight. A factory-installed armrest option is available. Deluxe seats used in cabs are fully adjustable fore/aft along with height and weight. Seats are equipped with a seat switch to detect operator’s presence for the PTO alarm. Both kinds of seats have retractable seat belts.
Composite fenders and hood
  • Resists paint chips and dents
  • Will not rust and retains a like-new finish longer
  • Hood tilts up to provide easy access for service.

Cab platform

A rollover protective structure (ROPS) certified, factory-installed cab is available to all operators. The cab provides protection from heat and cold, wind, noise, and offers a climate-controlled environment. The cabs are also assembled to the tractor chassis as a complete unit mounted on composite isolators.

AutoTrac™ Universal ready

John Deere 6E Series Cab Tractors equipped with the GreenStar™ Ready wiring harness are easily compatible with John Deere precision agricultural products. AutoTrac Universal ready includes:

  • GreenStar display bracket and an A-post connector
  • StarFire™ receiver bracket and connector
  • AutoTrac Universal 300, StarFire 6000 Receiver, and Gen 4 wiring harness installed on the tractor
Fully isolated cab advantages

By including the floor and steering column as part of the cab, it significantly reduces noise levels in the cab. It also creates a more sealed environment by reducing airborne particles entering the cab, such as dust, pollen, and other contaminants. The 6E Series Cab Tractors are base equipped with a mechanical cloth seat for standard comfort. For those who will be operating on rough or unstable terrain, an optional air suspension seat is available that gives maximum comfort.

The cab is incredibly spacious, and the flat floor creates a spacious feel. The operator of a 6E Series Cab Tractor will appreciate the reduction in noise and vibration through the seat, steering wheel, and lever controls. By adding the cab to the tractor, the noise level is decreased.

Visibility is built in:

  • Ceiling control panel is located to the upper right side
  • Air-conditioning components are located on the upper rear corners of the cab
  • Fuel tank is located out of line of sight below the left-hand side of the platform
  • Optional loader view roof
  • Liquid-crystal display (LCD) instrument cluster to easily monitor tractor functions

Instrumentation and controls

An LCD instrument cluster provides at-a-glance information on engine and power take-off (PTO) speeds for operators to have immediate vehicle information. The instrumentation and controls include:

  • Tachometer
  • Engine coolant temperature
  • Hour meter
  • Directional indicator light
  • Fuel lever indicator
  • Alternator indicator light
  • Oil pressure indicator light
  • Ground speed indicator
  • Air filter restriction light
  • Headlight dimmer switch
  • Exhaust filter cleaning indicator

Electrohydraulic mechanical front-wheel drive (MFWD) engagement allows operators to easily and quickly engage MFWD when needed with minimal effort and is located on the right-hand console.

Designed for operator comfort

For additional operator comfort, the cab is fully insulated and includes:

  • Left- and right-hand doors
  • Sun visor
  • Mechanical cloth seat (optional air)
  • Air suspended seat
  • Cup holder (two)
  • Tilt/telescopic steering column
  • Convenience power outlet
  • Power outlet
  • Front wiper with washer
  • Air conditioning and heater
  • Two monitor mounting bases
  • Removable rear monitor plug
  • Radio prep package with antenna cable
  • Antenna
  • Two speakers and wiring harness
  • Internal rearview mirror, adjustable height
  • Two external fixed rearview mirrors
  • Basic fender upholstery
  • Door-activated dome light
Instructional seat option

An instructional seat is an option on the 6E Tractors.

4.5L (274.6-cu in.) PowerTech™ engine

John Deere 6E Series Tractors feature the reliable and proven 4.5L (274.6 cu in.), two-valve PowerTech E engine.

The PowerTech E engine, used in 6100E, 6115E, and 6130E models, are diesel engines that can deliver up to 25 percent torque rise.

Model Engine Emission level Engine displacement Rated engine speed
6100E PowerTech E Tier 3 4.5L (274.6 cu in.) 2100 rpm
6115E PowerTech E Tier 3 4.5L (274.6 cu in.) 2100 rpm
6130E PowerTech E Tier 3 4.5L (274.6 cu in.) 2100 rpm

These engines are designed for performance, long life, and low maintenance costs. The two-valve engine design of the PowerTech E provides excellent torque, fuel efficiency, and durability. The PowerTech engine delivers:

Clean performance Latest engine technology True customer value

The PowerTech E also features a rotary injection pump and mechanical governor.

12F/4R top shaft synchronized (TSS), 12F/12R PowrReverser™, 24F/8R TSS Hi-Lo, and 24F/12R (30k and 40k) PowrReverser Plus transmissions

For operators requiring more field speeds to achieve the most precise operating ranges, five transmission options are available in the 6E Series.

  • 12F/4R TSS with wet clutch
  • 24F/8R TSS Hi-Lo with wet clutch
  • 12F/12R PowrReverser wet clutch
  • 24F/12R (30 and 40k) PowrReverser Plus wet clutch

All 6E transmissions are equipped with a wet clutch to increase durability and operator comfort and reduce service time.

The 24F/8R TSS Hi-Lo and 24F/12R PowrReverser Plus transmissions offer 24 forward speeds for the ultimate in speed selection. Convenient push-button controls actuate the electrohydraulic high/low selector.

The forward lever selects one of three speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. This same lever is where the high/low control buttons are located. The range lever selects ranges A, B, C, or D. Ranges C and D are fully synchronized. That means, when upshifting, operators can move from ranges B to C to D without stopping the tractor. On the downshift, operators can move from D back down to C without stopping.

The Hi/Lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work. Operators can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear. The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

Those selecting the 6E Series PowrReverser transmission are looking for unmatched performance. This transmission is ideal for working in tight areas where forward to reverse shifting is a primary occurrence, such as in barns, feedlots, and loader applications.

The 12F/4R TSS and 12F/12R PowrReverser transmissions offer five well-spaced ground speeds placing the operator in the important field-working range of 4 km/h to 12 km/h (2.5 mph to 7.5 mph). The 24F/8R Hi-Lo transmission delivers 10 well-spaced ground speeds to match the correct speed for each application, and it can accelerate up to 31.6 km/h (19.6 mph), doing more in less time.

The optional 24F/12R PowrReverser Plus transmission delivers 11 well-spaced ground speeds to match the correct speed for soil preparation or planting application with a top speed of 40 km/h (25 mph).

24F/12R PowrReverser Plus transmission includes:

  • Wet clutch
  • Platform-mounted shift levers (three gears, four ranges, with Hi/Lo selector)
  • Left-hand reverser (F to R without clutching)
  • Constant-mesh, helical gears
  • Pressure-lubricated top shaft
  • Neutral start switch
  • Option of 40k

A dash-mounted PowrReverser modulation kit (LVB25727) is available to set the aggressiveness of the forward and reverse shuttle modulation that best fits the application or the operator’s comfort level.

Wet clutch

John Deere has led the industry in the innovation of wet clutches. In this wet-clutch design, five 17-cm (6.7-in.) diameter clutch disks provide optimum clutch modulation for smooth operation; the disks are oil-cooled for a lifetime of service.

The biggest advantage of a wet clutch is its ease of use, as the required force to depress the pedal is minimal. Also, with a wet clutch, the need for frequent adjustment and clutch mechanism changeover is eliminated.

Transmission options:

  • 12F/4R TSS wet-clutch transmission
  • 12F/12R PowrReverser wet-clutch transmission
  • 24F/8R Hi-Lo wet-clutch transmission
  • 24F/12R PowrReverser Plus (30k and 40k) wet-clutch transmission
Operator controls

Hi-Lo and PowrReverser Plus high/low buttons

Two levers, one for speed and one for range, with the addition of an electrohydraulic left-hand reverser in PowrReverser transmissions, provide operators optimum control and maneuverability.

  • Range lever (left-hand side in open operator station, right-hand side in cab) selects four ranges (A, B, C, D).
  • Gear selection (right-handside) selects speeds 1, 2, or3 in the forward or reverse direction.
  • Electrohydraulic left-hand reverser allows for quick and convenient shuttle shifting between forward and reverse at any speed (available for PowrReverser transmissions).
Forward and reverse speeds

All speed gears (1, 2, 3) are fully synchronized for shifting-on-the-go capabilities, putting less wear on the operator and saving them time in the field. In all 6E transmissions, gears are synchronized for low shifting effort while the operator is doing field or loader work and during transport.

The high and low speeds on the 24F/8R Hi-Lo and the 24F/12R PowrReverser Plus transmissions can be shifted without clutching while the tractor is under load. This makes for quick speed changes when operating in uneven conditions.

The ranges (A, B) are not synchronized. This means the tractor must be stopped for the operator to select the range. However, with operator input, the speeds have been well spaced out to minimize the need to change ranges within applications. The ranges (B to C, C to D, and D to C) are synchronized. That allows the operator to shift ranges on the go in transport and high-speed applications like operating a mower-conditioner.

Open-center, gear-driven hydraulics

  1. Pump
  2. Selective control valve (SCV)
  3. Flow
  4. Operation circuit
  5. Sump

All 6E Series Tractors feature a gear-driven, open-center (constant-flow) hydraulic system with a maximum pressure of 19,500 kPa (2830 psi).

The tractor incorporates a triple hydraulic pump design. The implement, steering-transmission lubrication systems, and transmission all function separately; all three systems utilize a common reservoir resulting in ease of serviceability. Two selective control valves (SCVs) are in base with a third deluxe valve as optional equipment.

Hydraulics SCVs

To control a rear implement, two standard SCVs come as base for the 6Es and a third deluxe SCV is an orderable option.

Dual-standard SCV

Benefits:

  • All SCVs feature four positions — neutral, raise, lower, and float
  • Deluxe SCVs feature flow control
  • Deluxe SCVs have three detents: pressure limit kick-out, spring center, and continuous detent
  • Stackable design to easily add a third SCV if desired

Triple-deluxe SCV

BSJ10220 installation location

Pressure available when needed

Pressure for entire system is established by function requiring the highest pressure. As demand lessens, so does pump pressure and engine power requirement. Steering section (additional 28.5 L/min [7.5 gpm] in base equipment) provides full power when needed for steering. Transmission section (additional 28.5 L/min [7.5 gpm] in base equipment) provides hydraulic pressure for the power reverser transmission.

The steering and transmission circuit functions return to sump, giving improved system performance and cooling. By returning functions to sump, the system is simplified and provides faster service and increased uptime.

Remote flow rating
Models Rated flow At engine rpm
6100E, 6115E, 6130E 72.3 L/min (19.1 gpm) 2100

The steering side and transmission side of this pump provides an additional 28.5 L/min (7.5 gpm) respectively.

Dual 540-/1000-rpm rear power take-off (PTO)

The 6E Series Tractors feature an independent and electric 540/1000 rpm PTO as base equipment. For feeding, mixing, baling hay, or any other PTO application, the 6E Series 540/1000 rpm PTO can match up efficiently to any requirement.

An easy-to-use push/pull knob on the right-hand console allows the operator to quickly and smoothly engage and disengage the PTO. If the tractor is stopped or is being downshifted, the PTO rpm levels can be maintained. To engage the PTO, simply pull up on the knob. When the PTO is engaged, a light on the instrument panel illuminates. To disengage the PTO, simply push the knob back down.

Adding to operator safety, the tractor does not start with the PTO lever engaged. An alarm sounds if the operator attempts to leave the seat with the PTO engaged.

NOTE: Operators should disengage PTO before the engine is stopped.

The 6E offers a PTO wet clutch for a long, reliable lifetime of operation. The wet clutch eliminates the need for frequent adjustment and clutch mechanism changeover.

Reversible 540/1000 rpm PTO stub shaft

Operators can easily switch between 540 and 1000 rpm-driven implements simply by removing the stub shaft and reversing its position. The reversible 540/1000 PTO stub shaft is in a dry cavity to allow changing from 540 to 1000 rpm or vice versa without any oil spillage. Just remove the snap ring to remove the shaft.

Serviceability

Tilt hood

The hood tilts to open wide, allowing unencumbered engine compartment access. An easy-reach tether cord allows access to effortlessly close the hood. Overriding the two gas struts permits the hooding up to 90 degrees. Unhooking the tether from the radiator support allows the operator to open the hood even further to provide better access for servicing the under-hood components.

The tilt-up hood provides easy access from the ground to:

  • Coolant recovery tank
  • Tiltable radiator assembly
  • Air cleaner
  • Front-mounted battery
Filter service intervals

Vertical engine oil and fuel filters minimize spilling for cleaner and faster changes. 500-hour service intervals (when using John Deere Torq-Gard™ oil or Plus-50™ lubricant and filter) for engine oil and filter, fuel filter, and cab air filter reduce maintenance costs over the life of the tractor.

Two engine fuel filters provide the needed protection for the fuel system:

  • One 30-micron primary filter
  • One 2-micron final filter
Radiator cleanout

Blowing out the radiator is easy and convenient with the 6E Series Tractors equipped with an in-base, sliding radiator assembly. Open the hood to clean out the radiator, fan, and cooling package. The condenser can be pulled out to one side for better access.

Coolant tank

The coolant recovery tank, located behind the air filter, is easily accessible from the ground.

Air filter

The engine air filter is located under the front of the hood above the radiator. Undoing the quick-attach fastener allows for fast and easy servicing – no tools required. The Power Core air filter removes more than 93 percent of foreign material before it reaches the filter element.

Cab air quality

The cab air quality system is comprised of two fresh air cab filters. A filter is located on the bottom side of the left- and right- side cab roof is easily accessible by removing two wing screws and a sealed cover plate.

Battery

Open the hood to access the battery. No tools are needed.

Transmission hydraulic oil sight gauge

Instead of using a dipstick, the transmission/hydraulic oil level is checked with a sight glass on the left side of the rear axle housing on 6E Series Tractors.

Transmission hydraulic oil filter

Transmission/hydraulic oil filter is conveniently located and designed to save the operator service time and reduce maintenance costs.

Change intervals:

  • 500-hour transmission/hydraulic filter change
  • 1000-hour transmission/hydraulic oil change
Windshield washer tank

The windshield washer tank is conveniently located at the right rear of the cab for easy refilling. This is the same washer fluid tank for the rear window wiper when ordered as a field-installed kit.

Brake pedal adjustment

Easy brake pedal travel adjustment is provided on cab and open operator station (OOS) tractors. Turnbuckle linkage is located at the top side of left and right rear axles.
