MyDealer:2WD Harvester Head
- Compatible: 1270H, 1470H
- Feed roller opening: 550 mm
- Maximum cutting diameter: 550 mm
- Saw bar length, max: 670mm
- Feed speed, max: 5.0 m/s
- Feed force, max: 27 – 30 kN
- Weight: 1690 kg
Reliable tool for eucalyptus trees

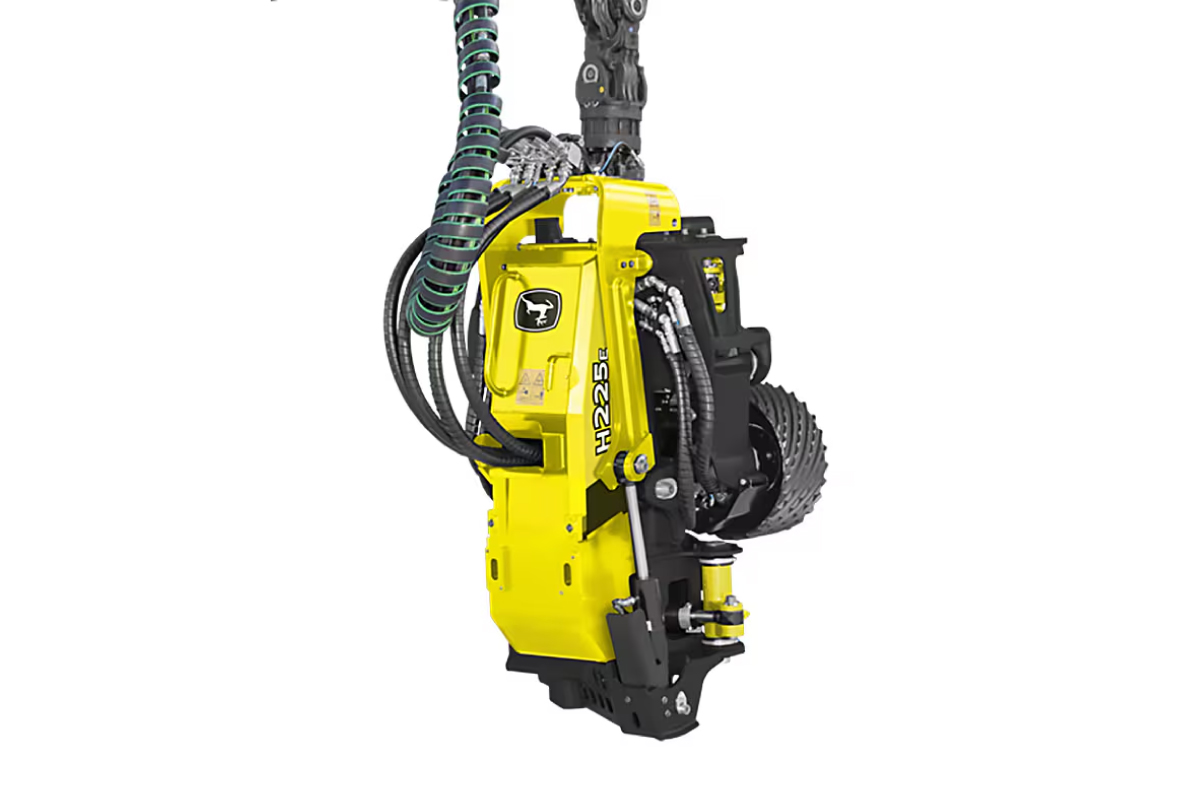

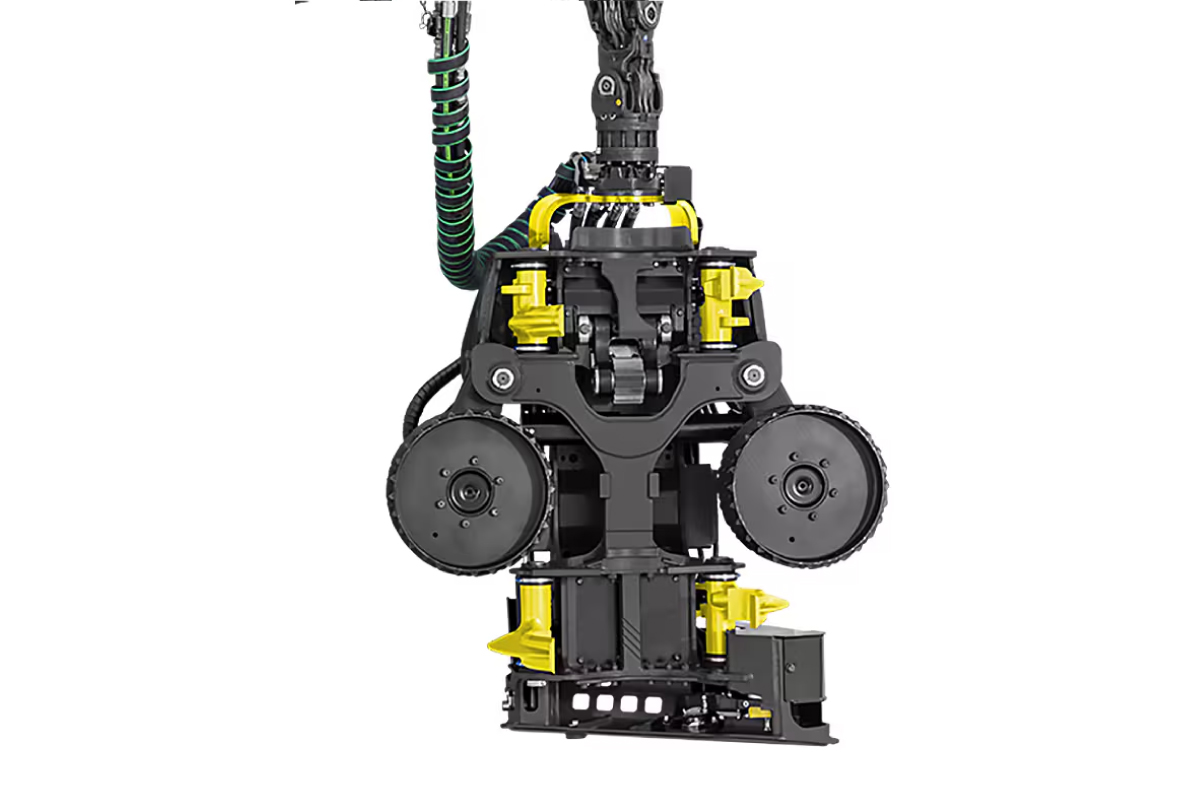

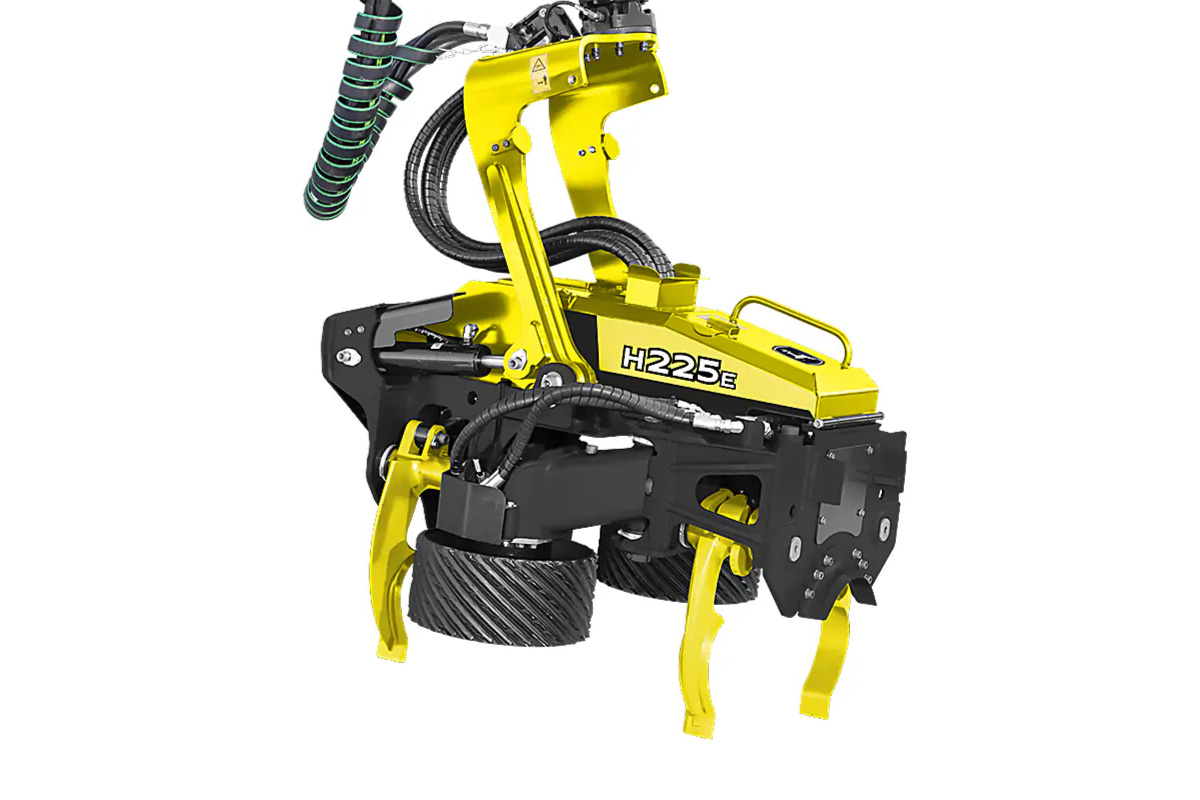

The H225E is an efficient and high-performance harvester head, especially for eucalyptus harvesting. The debarking result is excellent for both thick and thin trunks.
JOHN DEERE
Features
Max. feeding diameter 750 mm
Long component life, durable hose routings and ease of daily service add to the high reliability of the H225E.
- High productivity
- Excellent debarking
- Excellent durability
- Controllability with PEvo valve gives excellent performance and serviceability
- All hosing is new and improved with PEvo valve implementation
- Accurate diameter measuring
- Reliable and accurate length measuring
- Cast upper delimbing knives make it easy to pick stems from the ground
- Roller arm cylinder protection lowers service and repair costs
- Easy to service
- Excellent performance with crooked trees
- New look designed by BMW Designworks
- Max cutting diameter is 550 mm.
Additional options
- Support plate to upper frame for fluent feeding of crooked stems
- Support roller with in feed motor measurement
- Find-end-sensor – laser sensor for productivity increase when processing stems from a pile and when working in slopes
- Fixed lower knife
- For tracked machines: WP35 – Work Pressure 350 bars – option for more hydraulic power
- Variable angle feed rollers for improved debarking and increased effective feed speed
- The variable angle Vario feed rollers make the processed stem rotate in different speeds depending on the diameter, improving debarking quality.
- Increased feed speed at the top of the stem improves productivity.
- Vario feed rollers also decrease the need for reverse debarking thus increasing productivity.
