• Offered in 4-, 6-, 8-, or 10-row configuration
  • Row spacing options include 30 in (762 mm), 36 in. (914 mm), 38 in. (965 mm), and 40 in. (1,016 mm) 70 cm spacing for 6- and 8-row frames only.
  • Available in 1.6 bu. or 3 bu. MaxEmerge™ 5 row unit
  • Insecticide option for 1.6 bu.

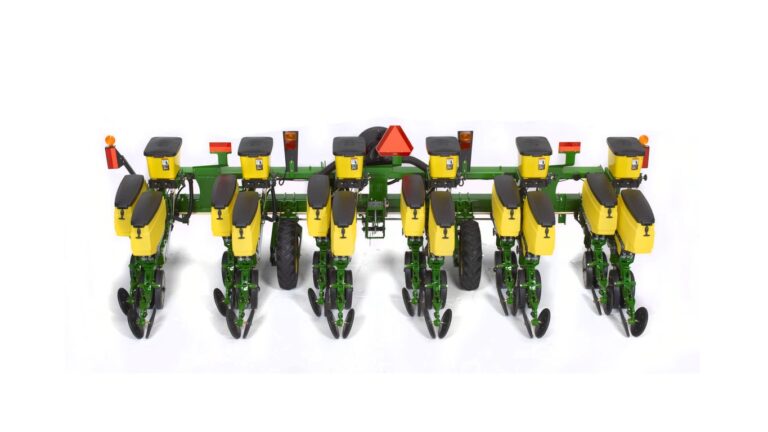

  • 6 twin rows with 36 in. (914 mm) or 38 in. (965 mm) spacing
  • Available in 2 bu. twin row MaxEmerge™ 5 row unit
  • Optional lift assist wheels may be ordered
  • 12 rows with 30 in. (762 mm) spacing
  • Available in 1.6 bu. or 3 bu. MaxEmerge™ 5 row unit
  • Insecticide option for 1.6 bu.
  • Requires a tractor horsepower range of 86 kW (115 hp) to 149 kW (200 hp)
  • 8-row, 762 mm (30 in.) spacing
  • Transport width under 3.05 m (10 ft.)
  • 1.6 bushel hoppers

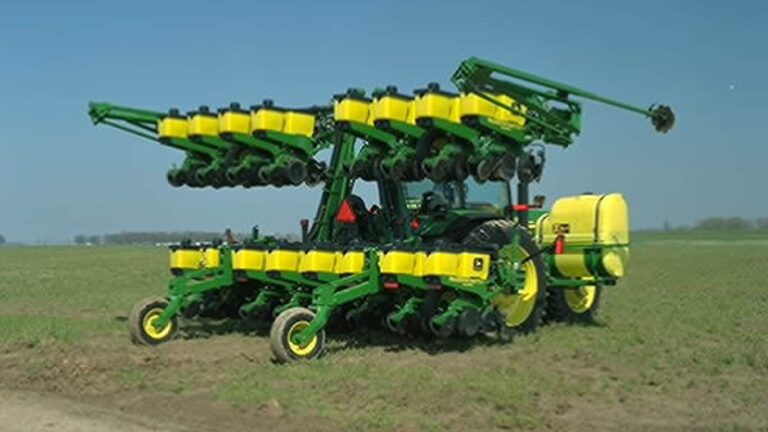

  • Offered in 8-, 12-, or 16-row configuration
  • Row spacing options include 914 mm (36 in.), 965 mm (38 in.), and 1,016 mm (40 in.) for 8- and 12-row frames, and 762 mm (30 in.) spacing for 12- and 16-row frames.
  • Available in 1.6 bu. or 3 bu. MaxEmerge™ 5 row unit
  • Insecticide option for 1.6 bu.
  • 16 rows with 30 in. spacing
  • Available in mini-hopper MaxEmergeâ„¢ 5 row unit
  • Two 50 bu. Central Commodity System tanks

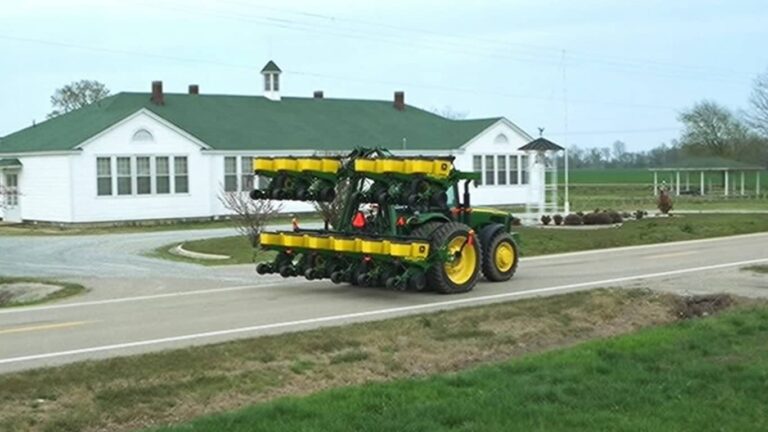

  • Stack-fold feature provides in-cab folding without emptying hoppers to transport
  • 12-row, 914 mm (36 in.), 965 mm (38 in.), or 1,016 mm (40 in.) spacing
  • No lift-assist wheels for improved maneourvrability
  • Hydraulic wing locks for faster field-to-field transport
  • 35-bushel CCS tank
  • 12 twin-rows with 914 mm (35 in.) or 965 mm (38 in.) spacing
  • Available in mini-hopper twin row MaxEmerge™ 5 row unit
  • Requires large-frame row-crop tractor with minimum 186 kW (250 hp)
  • Offered in 11-, 12-, 13-, and 15-row configurations
  • Row spacing options include 15 in. (381 mm), 18 in. (472 mm), 19 in. (483 mm), 20 in. (508 mm), and 22 in. (559 mm), but not all spacings featured on every row configuration. See dealer.
  • Available in 1.6 bu. or 3 bu. MaxEmerge™ 5 row unit
  • Insecticide option for 1.6 bu.
